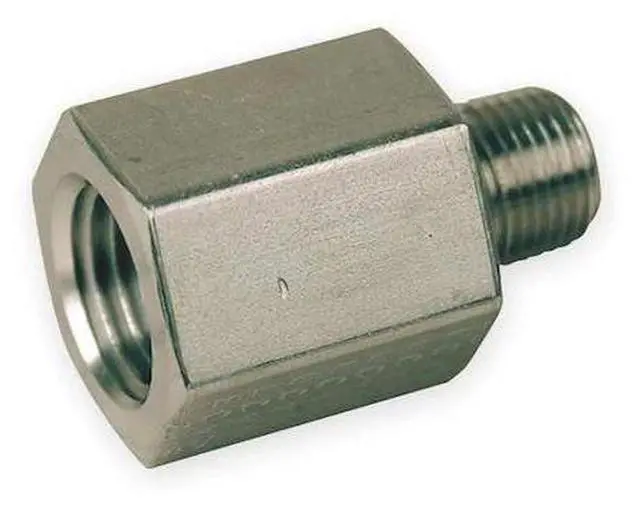

PARKER 12-8 RA-SS Reducing Adapter, 316 Stainless Steel, 3/4 in FNPT x 1/2 in

The PARKER - 12-8 RA-SS is a stainless steel reducing adapter used to connect pipes or fittings of different diameters, providing a transition from a 3/4-inch female NPT connection to a 1/2-inch male NPT connection. Constructed from 316 stainless steel, it is compatible with fluids within the rated operating pressure and temperature ranges (up to 4,300 psi and -425 to 1,200 °F) in industrial fluid and gas systems. The adapter supports a maximum operating pressure of 4,300 psi and is rated for temperatures ranging from -425 to 1,200 °F. It conforms to ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards.

Key Features:

• - Material grade: 316 stainless steel.
• - Connection Types: Female NPT on side A (3/4-inch) to Male NPT on side B (1/2-inch).
• - Overall Length: 1.94 inches (1 15/16 in).
• - Hex Size: 1-3/8 inches for wrench application.
• - Maximum Operating Pressure: 4,300 psi.
• - Temperature Range: -425 to 1,200 °F.
• - Standards: ANSI B31.1, ANSI B31.3, ANSI B1.20.1.
• - Does not include pre-applied thread sealant or sealing components.
• - Color: Silver.

. This item has been restricted from sale in the following state(s): []
