PARKER EZ-251-4FP Quick Connect,Socket,1/4" Body,1/4"-18

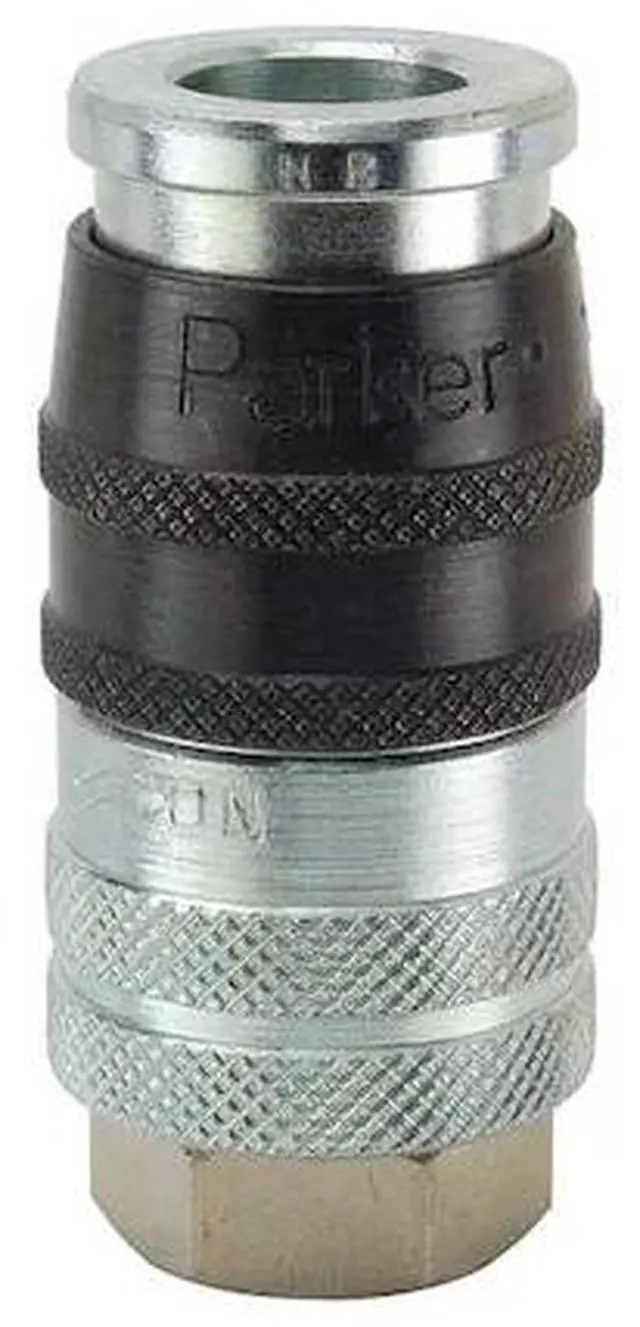

The PARKER - EZ-251-4FP is a quick connect hose coupling specified for pneumatic service. It has a push-to-connect locking mechanism and includes an integrated tubular valve for air-flow control. The coupling is constructed from steel with a trivalent chrome finish and features a female hose fitting with a 1/4 in size. It meets the Industrial interchange standard and is suitable for use with compressed air lines.

Key Features:

• - Application: Pneumatic
• - Coupling Locking Type: Push-to-Connect
• - Coupling Component: Socket
• - Hose Fitting Gender: Female
• - Hose Fitting Size: 1/4 in
• - Connection Type: NPT thread (1/4"-18)
• - Material: Steel with trivalent chrome finish
• - Includes Valve: Yes (Tubular valve type)
• - Max. Flow Rate: 707.92 liters per minute (lpm)
• - Max. Working Pressure @ 70°F: 300 psi
• - Seal Material: Nitrile
• - Temperature Range: -40°F to 250°F
• - Overall Length: 2.13 inches
• - Max. Outside Diameter: 1 inch
• - Barbed: No
