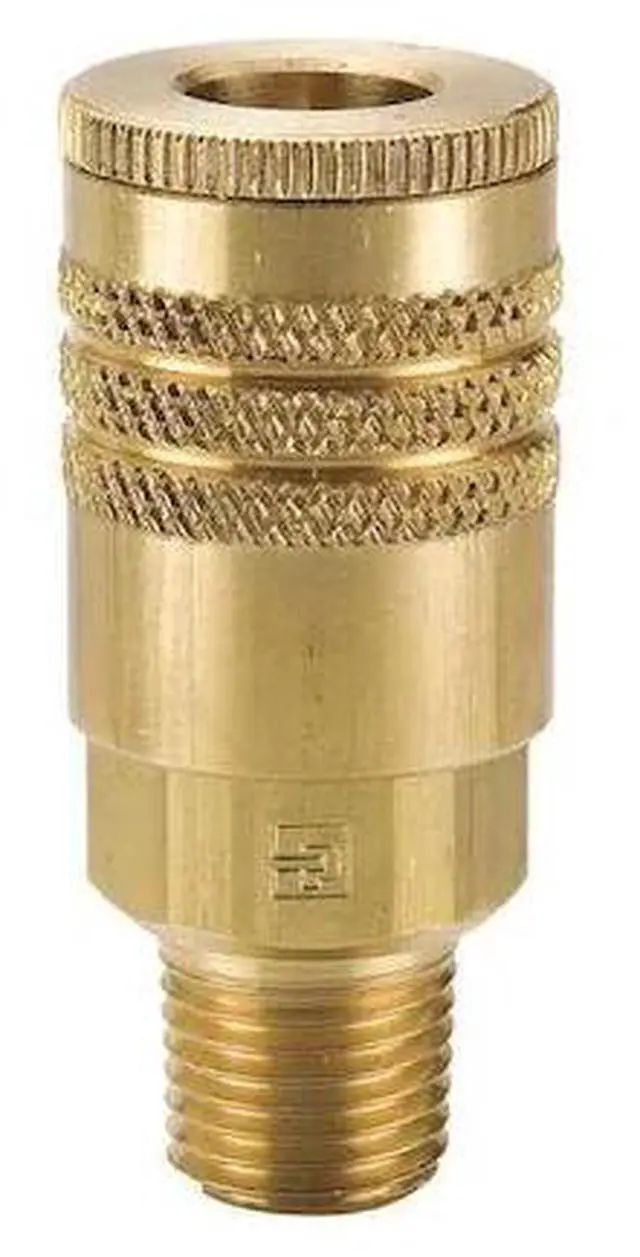

PARKER B52 Quick Connect,Socket,1/4" Body,1/4"-18

The PARKER - B52 is a quick connect hose coupling designed for pneumatic applications, featuring a sleeve locking mechanism for connection/disconnection without the use of tools. Constructed from brass, it includes a tubular valve and provides a sealed interface when installed with compatible fittings and within the specified pressure and temperature ranges. This coupling features a sleeve locking mechanism and follows the ARO interchange standard, is intended for use in pneumatic systems where tool-free connection/disconnection may reduce the time required to change hose connections. Rated maximum working pressure: 300 psi, and rated operating temperature range: -40°F to 250°F.

Key Features:

• - Hose fitting size and coupling size: 1/4 in
• - Connection type: Male NPT thread with 1/4"-18 thread size
• - Coupling component: Socket
• - Seal material: Nitrile
• - Maximum outside diameter: 7/8 in (maximum, as specified).
• - Overall length: 2.06 in (as specified).
• - Includes valve: Yes, tubular valve type
• - Coupling locking type: Sleeve
• - Application: Pneumatic
