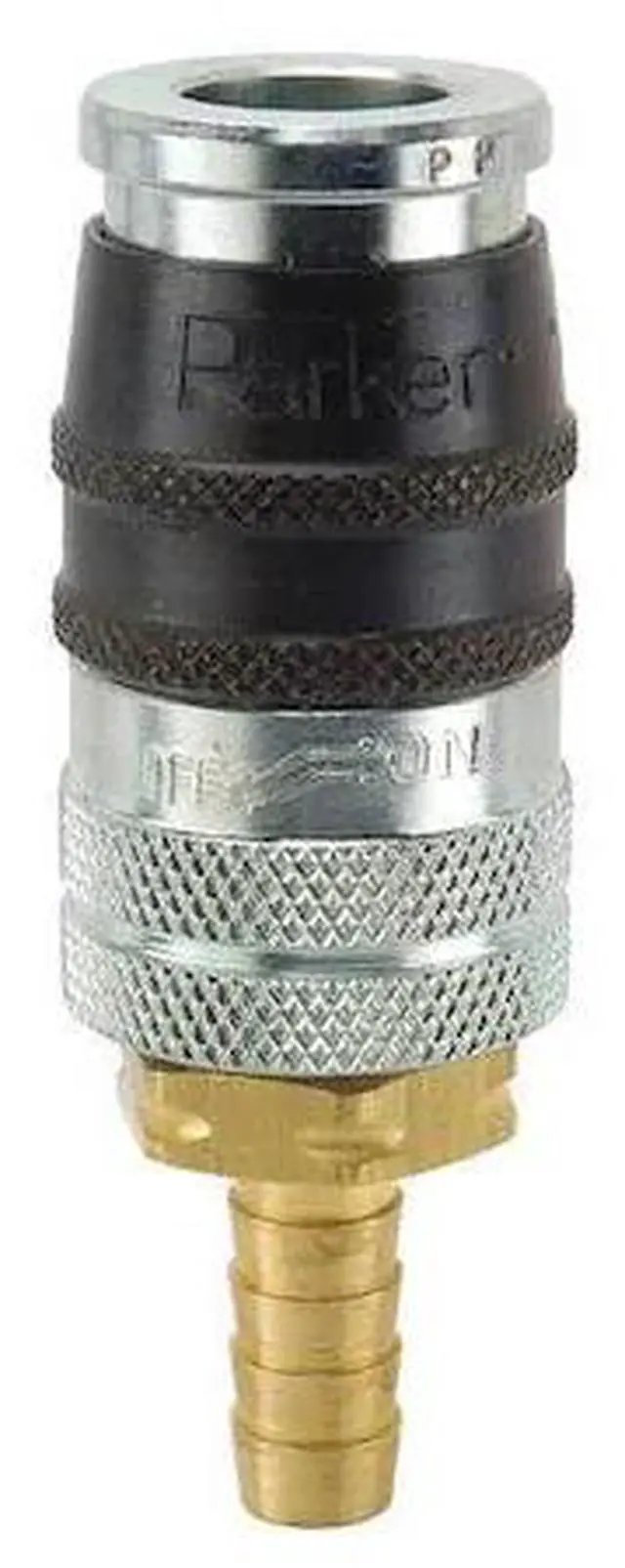

PARKER EZ-251-4HB Quick Connect,Socket,1/4" Body,1/4" Barb

The PARKER - EZ-251-4HB is a push-to-connect hose coupling for pneumatic applications, configured for push-to-connect operation for connection and disconnection without additional tools, and includes a seal system intended to resist air leakage when properly installed. Constructed from steel with a trivalent chrome finish, it includes an integrated tubular valve to control air flow. The coupling features a 1/4 inch hose barb connection and mates with a 1/4 inch industrial-interchange socket, compatible with 1/4 in industrial-interchange sockets for standard pneumatic hookups (as specified). Rated maximum working pressure: 300 psi at 70°F. Rated maximum flow rate: 707.92 lpm within a rated operating temperature range of -40°F to 250°F.

Key Features:

• - Application: Pneumatic use
• - Hose barb size and hose fitting size: 1/4 in
• - Connection type: Hose Barb
• - Coupling component: Socket
• - Coupling locking type: Push-to-Connect
• - Includes tubular valve for flow control
• - Material: Steel with trivalent chrome finish
• - Rated maximum working pressure: 300 psi at 70°F
• - Rated maximum flow rate: 707.92 lpm
• - Rated operating temperature range: -40°F to 250°F
• - Overall length: 3.19 in
• - Seal material: Nitrile
• - Interchange type: Industrial
