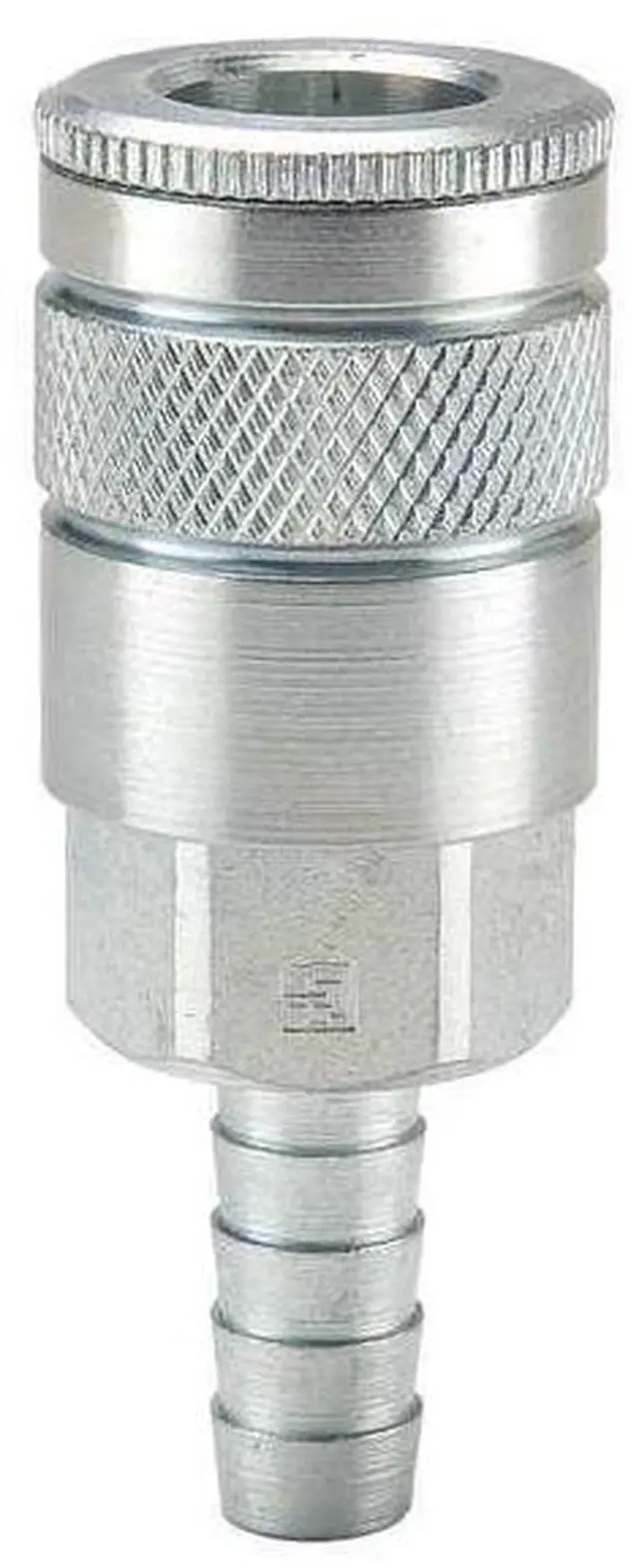

PARKER 16-5B Quick Connect,Socket,1/2" Body,3/8" Barb

The PARKER - 16-5B Quick Connect Hose Coupling is for use with pneumatic compressed-air systems, and is configured for quick connection and disconnection without tools. It features a male hose barb connection compatible with 3/8 inch inner diameter hoses and a 1/2 inch quick-connect body size. The coupling employs a sleeve locking mechanism and includes a tubular valve to control air flow. Its steel construction with trivalent chrome finish is rated for use in compressed-air systems.

Key Features:

• - Material: Steel body with trivalent chrome finish
• - Connection type: Male hose barb designed for 3/8 in hose I.D.
• - Coupling size: 1/2 in with 1/2 in body size
• - Coupling locking type: Sleeve mechanism
• - Includes tubular valve for flow control
• - Maximum working pressure: 300 psi @ 70°F
• - Maximum flow rate: 3,114.85 liters per minute
• - Rated for operation within the specified temperature range (-40°F to 250°F)
• - Overall length: 3.13 inches
• - Seal material: Nitrile
• - Maximum outside diameter: 1 3/16 inches
• - Interchange type: Tru-Flate-Automotive
