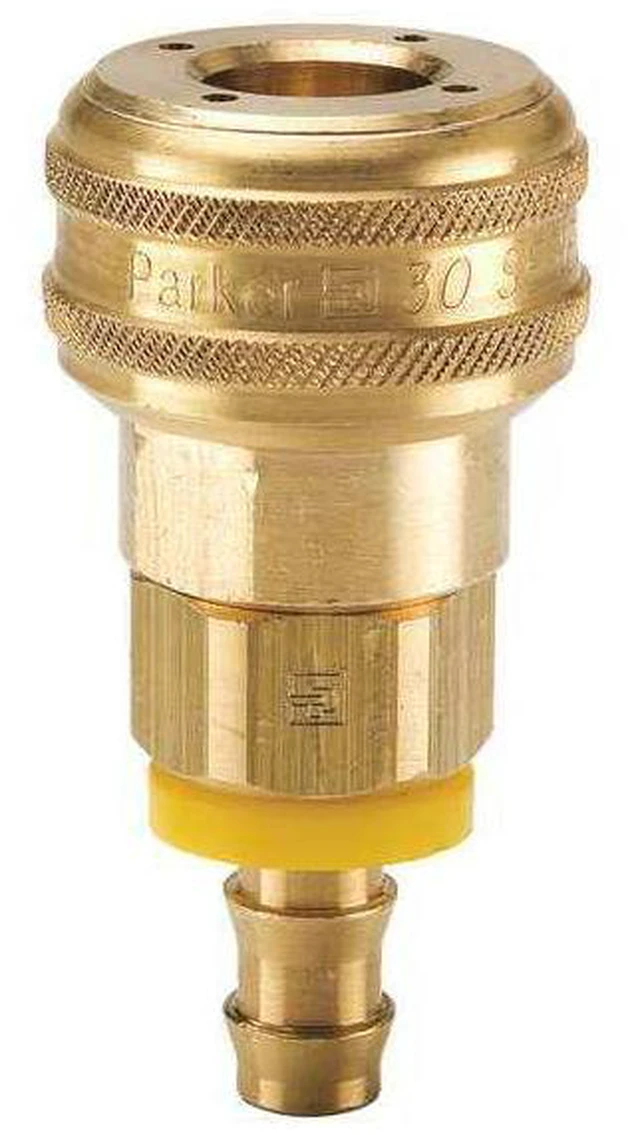

PARKER B34-5BP Quick Connect,Socket,3/8" Body,3/8" Barb

The PARKER - B34-5BP is a quick connect hose coupling designed for pneumatic applications. Tool-free connection and disconnection using a push-to-connect locking mechanism. Made from brass with nitrile seals, this coupling is suitable for use with air lines and features an integrated tubular valve to control flow. It supports hose inner diameters of 3/8 inch and conforms to the Industrial interchange standard, providing a seal suitable for pneumatic air-line applications within the specified working pressure range.

Key Features:

• - Connection type: Hose Barb with a 3/8 in barb size for flexible hose attachment.
• - Hose fitting gender: Male, with a 3/8 in hose fitting size matching the hose I.D.
• - Coupling component included: Socket.
• - Coupling locking type: Push-to-Connect, allowing tool-free operation.
• - Maximum working pressure rating: 300 psi at 70°F.
• - Maximum flow rate rating: 1,415.84 liters per minute.
• - Overall length: 2.81 in.
• - Maximum outside diameter: 1.375 in.
• - Seal material: Nitrile.
• - Operating temperature range: -40°F to 250°F.
