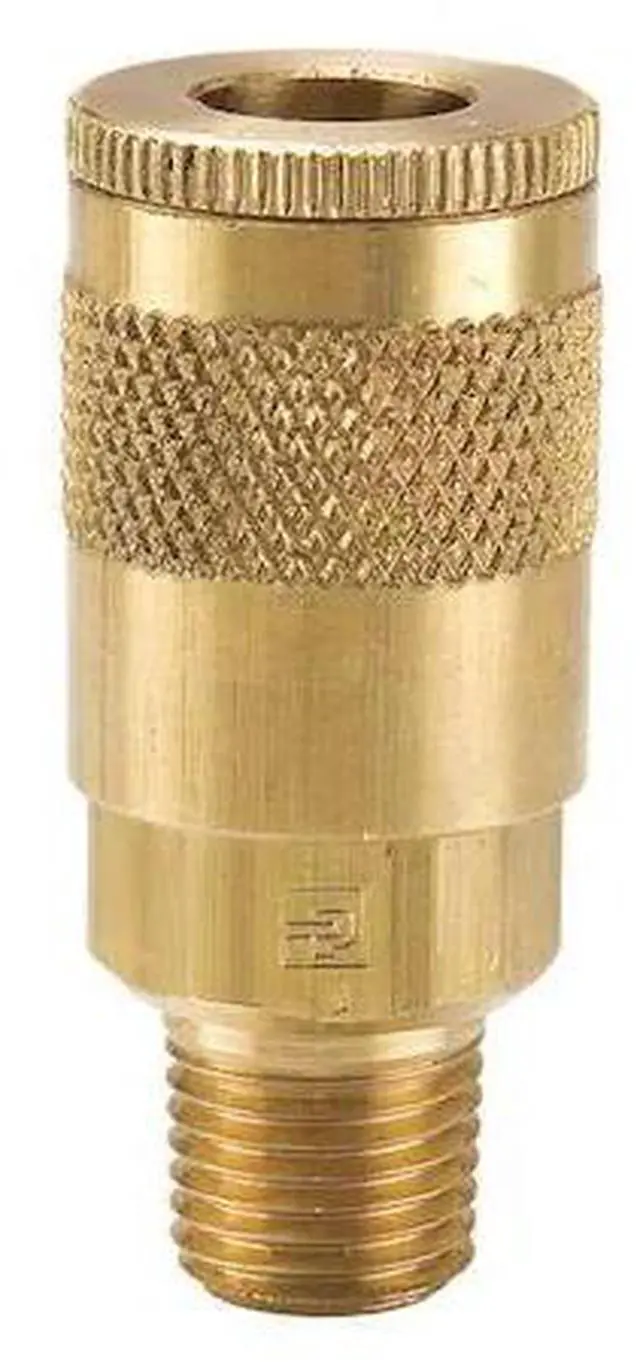

PARKER B12 Quick Connect,Socket,1/4" Body,1/4"-18

The PARKER - B12 is a brass quick connect hose coupling. It features a 1/4 inch NPT male hose fitting and a 1/4 inch coupling size, compatible with Tru-Flate-Automotive interchange types. The coupling uses a sleeve locking mechanism and includes a tubular valve, enabling connection and disconnection of air lines using a sleeve locking mechanism; leakage characteristics are based on system configuration and proper installation. Maximum working pressure rating is 300 psi at 70°F and the flow rate is rated up to 707.92 liters per minute for compatible pneumatic systems.

Key Features:

• - Material: Brass construction for the coupling body.
• - Application: Suitable for pneumatic systems.
• - Hose Fitting Gender and Size: Male, 1/4 inch thread size (1/4"-18).
• - Connection Type: NPT thread standard.
• - Coupling Component: Socket type with sleeve locking.
• - Includes Valve: Yes, with a tubular valve design.
• - Maximum Working Pressure: 300 psi at 70°F.
• - Maximum Flow Rate: 707.92 liters per minute.
• - Temperature Range: temperature rating: -40°F to 250°F (for rated operation).
• - Seal Material: Nitrile used for sealing elements.
• - Overall Length: 2.06 inches.
• - Maximum Outside Diameter: 15/16 inch.
