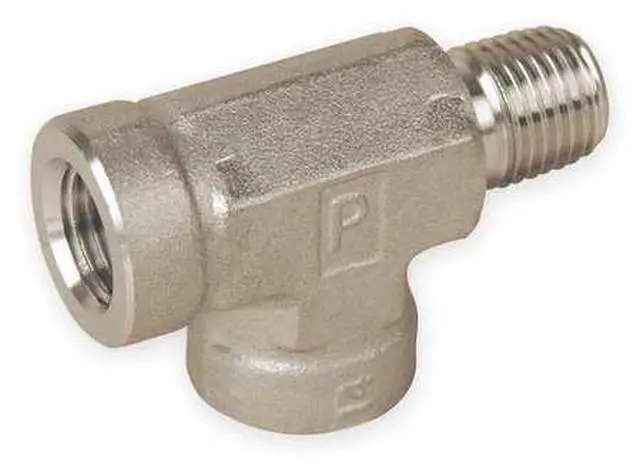

PARKER 12-12-12 ST-SS 316 Stainless Steel Street Tee, 3/4 in FNPT x MNPT x

The PARKER - 12-12-12 ST-SS is a street tee stainless steel pipe fitting made of 316 stainless steel. It is designed to join three pipe runs with a 90° branch, enabling the combination or splitting of fluid or gas flow. This fitting is rated for use with air, natural gas, and oil within specified parameters and has threaded connections with a female x male x female NPT configuration. It is rated for operation at pressures up to 3,500 psi and can withstand an operating temperature range of -425°F to 1200°F. The overall length of the fitting is 2 13/16 inches, with a pipe fitting length of 1.59 inches.

Key Features:

• - Intended to join pipe runs with a 90° branch in accordance with applicable fittings standards
• - Pipe size: 3/4 inch nominal size for all three connection points
• - Connection type: FNPT x MNPT x FNPT (female, male, female NPT threads)
• - Material grade: 316 Stainless Steel
• - Rated for operation at pressures up to 3,500 psi
• - Rated for operation within the temperature range of -425°F to 1200°F
• - Meets ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards
