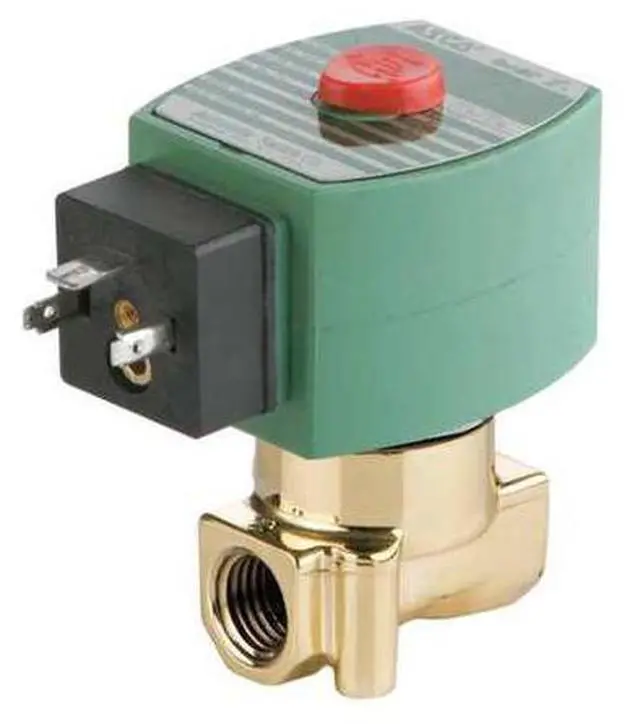

ASCO SC8262H232 Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe

The ASCO SC8262H232 Solenoid Valve is a 2-way, 2-position, normally closed, direct-acting valve designed to control the passage of fluids and gases. It features a brass body with NBR seals and includes the coil necessary for operation. Compatible with media including air, ammonia, biodiesel fuel, fuel oil, hot water, inert gases, light oil, liquid propane gas, natural gas, oxygen, steam, and water. The valve can be installed in either horizontal or vertical orientation. Environmental rating: Corrosive, Hazardous, Indoor, Outdoor.

Key Features:

• - Body Material: Brass
• - Seal Material: NBR
• - Valve Design: 2-Way/2-Position, Normally Closed
• - Operation Type: Direct Acting
• - Nominal Pipe Size: 1/4 in
• - Orifice Diameter: 1/8 in
• - Center Line Pipe Center Size: 2-13/16 in
• - Maximum Ambient Temperature: 140°F
• - Minimum Ambient Temperature: 14°F
• - Maximum Fluid Temperature: 180°F
• - Operating Pressure Differential Maximums: 340 psi (Air/Inert Gas), 215 psi (Light Oil), 300 psi (Water)
• - Operating Pressure Differential Minimums: 0 psi (Air/Inert Gas, Light Oil, Water)
• - Voltage: 120V AC
• - Wattage: 10.1 W
• - Electrical Connections: DIN
• - Coil Enclosure: Without Junction Box, Watertight
• - Coil Insulation Class: F
• - Includes: Coil and Seal
• - Inlet and Outlet Connection Types: NPTF
• - Mounting Orientation: Horizontal or Vertical
• - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
• - IP Rating: 66
• - Standards: CSA, UL Listed
• - Overall Dimensions: Length 1-9/16 in, Width 1-15/16 in, Height 3-1/8 in
• - Valve Type: High Flow
