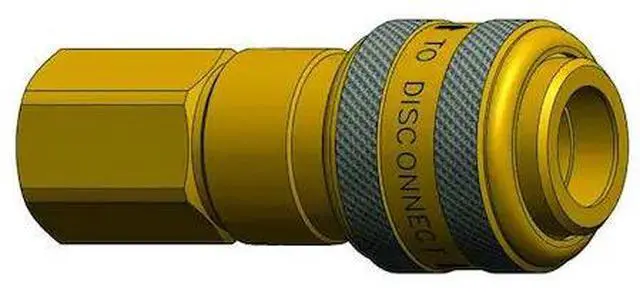

DIXON 3DF2-B Female to Industrial Coupler,(F)NPT,3/8

The DIXON - 3DF2-B is a provides a tool-free sleeve connection for rapid coupling and uncoupling designed for tool-free, rapid connection and disconnection at the end of a hose or pipe. It provides a sealed connection for fluid-tight performance when installed and used within the specified pressure and temperature ranges. The DIXON - 3DF2-B is compatible with air, water, and fluids when used within the specified pressure/temperature ranges and with compatible fluid types, with a rated maximum flow rate of 1,274.25 liters per minute and is rated for operation up to 300 psi at 70°F. Is constructed from brass with a zinc-plated finish and nitrile seals and has an operating temperature range of -40°F to 250°F. This coupling features a female hose fitting with a 1/4-inch size and uses an industrial interchange type with a sleeve locking mechanism to secure the connection.

Key Features:

• - Coupling component: Socket, with a prong-type valve included to control flow
• - Connection type: 1/4"-18 NPT threads
• - Body and coupling size: 3/8 inch diameter
• - Designed to fit 1/4 inch hose I.D.
• - Overall length: 2.5 inches and maximum outside diameter: 1 1/4 inches
• - Color: Yellow for visual identification
• - Seal material: Nitrile for fluid-tight seal when installed and used within specified pressure and temperature ranges
• - Material: Brass with zinc plating for corrosion resistance

. This item has been restricted from sale in the following state(s): []
