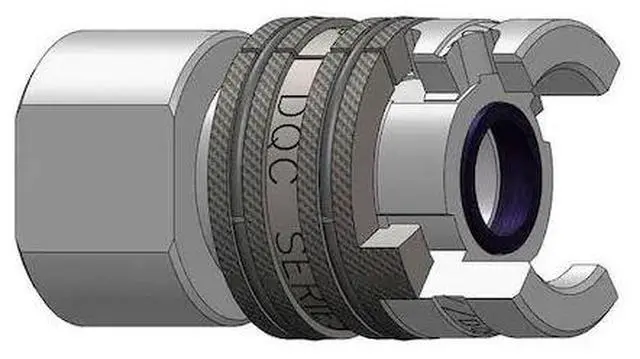

DIXON 4PF6 Female to Thor Coupler,(F)NPT,1/2,Steel

The DIXON - 4PF6 is a push-to-connect locking coupling for connection and disconnection without tools (socket push-to-connect) designed for rapid, tool-free connection and disconnection of hoses or equipment lines for water or air applications. It features a push-to-connect locking mechanism compatible with Thor style interchange standards. Made of steel with a zinc-plated finish, this female fitting accepts 3/4 in hose I.D. and has a 1/2 in coupling size and body size. is rated for operation in the temperature range -40°F to 250°F and provides a sealing interface using a nitrile seal (rated for use up to 300 psi at 70°F), providing push-to-connect locking for rapid hose connection and disconnection (rated up to 300 psi at 70°F).

Key Features:

• - Application: On end of hose or pipe for water or air use
• - Material: Steel with zinc plated finish
• - Connection Type: 3/4"-14 female thread
• - Coupling Component: Socket with push-to-connect locking
• - Interchange Standard: Thor style
• - Hose Fitting Size: 3/4 in hose I.D.
• - Max. Flow Rate: 7,079.21 liters per minute
• - Max. Working Pressure: 300 psi (at 70°F)
• - Temperature Range: -40°F to 250°F
• - Overall Length: 2.75 in
• - Seal Material: Nitrile
• - Max. Outside Diameter: 1 9/16 in
