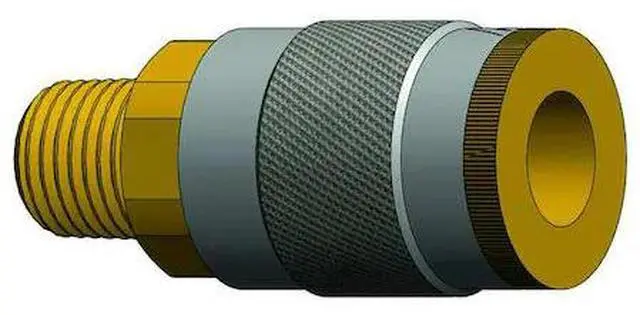

DIXON 2JM2-B Male to Automotive Coupler,(M)NPT,1/4

The DIXON - 2JM2-B is designed for tool-free hose and pipe coupling and uncoupling (socket coupling; sleeve locking mechanism). It includes a tubular valve for flow control during coupling and uncoupling. Made of brass with a zinc-plated finish, this fitting provides sealed, leak-resistant connections suitable for pneumatic and fluid transfer applications when used with fittings/hoses rated for the specified pressures, temperatures, and fluids. It is compatible with automotive-style hoses and follows the Tru-Flate-Automotive interchange standard. The coupling is rated for a maximum working pressure of 300 psi and flow rate up to 736.23 liters per minute (when used under the specified pressure conditions).

Key Features:

• - Coupling component type: Socket
• - Connection type: NPT thread with 1/4"-18 size
• - Hose fitting gender: Female, with hose fitting size 1/4 in
• - Body and coupling size: 1/4 in
• - is for hoses with a 1/4 in inner diameter
• - Incorporates nitrile seal material
• - Color: Yellow
• - Maximum outside diameter: 7/8 in
• - Overall length: 2.06 in
• - rated operating temperature range of -40°F to 250°F
