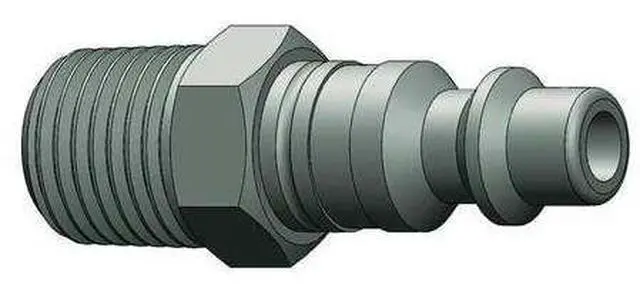

DIXON D4M4-S Coupler Plug,(M)NPT,1/2,303 SS

The DIXON - D4M4-S is a quick connect hose coupling supports tool-free connection and disconnection at the coupling interface. is designed to form a sealed connection using the specified nitrile seal. is compatible with water, air, and fluid lines when used within the specified max working pressure and temperature ranges. Constructed of 303 stainless steel with a zinc-plated finish, it features a male hose fitting with a 1/2 inch size and an NPT connection type. The coupling employs a sleeve locking mechanism and is a plug component for hose end connections, for use in hose change applications in various pneumatic, hydraulic, and general-purpose applications.

Key Features:

• - Body and coupling size: 1/2 inch
• - Hose fitting gender: Male
• - Connection type: NPT with thread size 1/2" -14
• - Material: 303 stainless steel with zinc-plated finish
• - Seal material: Nitrile
• - Max. flow rate: 2,576.83 liters per minute
• - Temperature range: -40°F to 250°F
• - Overall length: 2.38 inches
• - Max. outside diameter: 1 inch
• - Coupling locking type: Sleeve
• - Application: On end of hose or pipe
• - Barbed: No
• - Includes valve: No
• - Interchange type: Industrial
