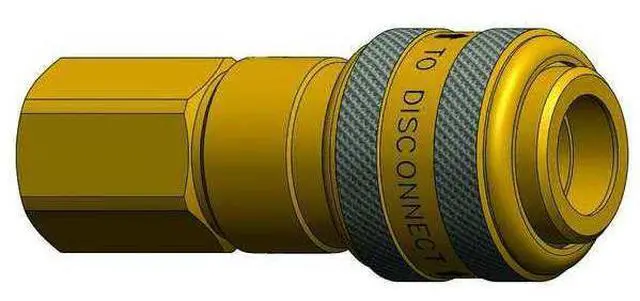

DIXON 3DF3-B Female to Ind. Coupler,(F)NPT,3/8,Brass

The DIXON - 3DF3-B is a hose coupling for tool-free connection and disconnection, designed for on-end attachment to hoses or pipes. It is suitable for use with compressed air, fluid lines, and general pneumatic or hydraulic applications. The coupling features a sleeve locking mechanism and includes a prong-type valve to control fluid or air flow. is rated for operation within -40°F to 250°F when used within the specified pressure and fluid conditions. is described as compatible with the Industrial interchange standard and accommodates hoses with a 3/8 inch inner diameter.

Key Features:

• - Coupling and hose fitting size: 3/8 in
• - Thread size: 3/8"-18 NPT female connection
• - Body size: 3/8 in and maximum outside diameter of 1 1/4 in
• - Overall length: 2.63 in
• - Material: Brass with zinc-plated finish
• - Includes prong valve for flow control
• - Seal material: Nitrile
• - Maximum working pressure of 300 psi at 70°F
• - Maximum flow rate: 1,274.25 liters per minute
• - Color: Yellow
