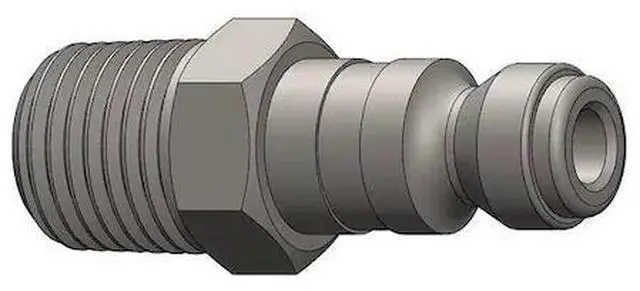

DIXON J3M3 Male to Automotive Plug,(M)NPT,3/8,Steel

The DIXON - J3M3 is a hose coupling designed for connection and disconnection without tools (sleeve locking mechanism). It features a male plug with an NPT connection type and is used as a coupling on the end of a compatible hose or pipe. The coupling body size is 3/8 in, compatible with hoses having a 3/8 in inner diameter and hose fitting size. This coupling is made of steel with a zinc-plated finish and a silver color. It employs a sleeve locking mechanism and includes a nitrile seal material for sealing within rated conditions. The coupling conforms to the Tru-Flate-Automotive interchange standard and is suitable for automotive style hose connections.

Key Features:

• - Coupling Size and Body Size: 3/8 in nominal diameter for connection compatibility.
• - Material and Finish: Steel construction with zinc plating for surface protection.
• - Connection Type: Male NPT thread (3/8"-18) for secure equipment attachment.
• - Locking Mechanism: Sleeve type for quick engagement and disengagement.
• - Seal Material: Nitrile for fluid and air sealing applications.
• - Hose Compatibility: Designed for 3/8 in hose inner diameter.
• - Maximum working pressure: 500 psi at 70°F (do not exceed).
• - Maximum flow rate: 1,642.37 L/min.
• - Rated temperature range: -40°F to 250°F.
