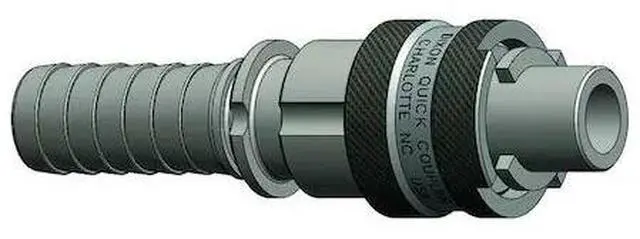

DIXON N4S6 Quick Connect,Plug,1/2" Body,3/4" Barb
- Item #: 9SIV0HAHZU5397
- Mfr. Part #: N4S6
- The brand for this item is DIXON
- Orders $75 or more ship free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
The DIXON - N4S6 is a quick connect hose coupling designed for tool-free, rapid connection and disconnection of hoses or pipes. It features a sleeve-type locking mechanism and a male hose fitting with a 3/4 in barb size for use with 3/4 in hose inner diameters. Maximum rated flow rate: 5,776.64 liters per minute. Maximum working pressure rating: 500 psi at 70°F. for use with Bowes-style interchange quick-connect systems for pneumatic and fluid transfer applications (as applicable). The body size and coupling size are both 1/2 in, facilitating connections to standard mating parts.
Key Features:
- - Material: Steel with zinc-plated finish.
- - Seal material: Nitrile. Temperature range: -40°F to 250°F.
- - Overall length: 4.94 in with a maximum outside diameter of 1.44 in.
- - Connection type: Hose barb.
- - Does not include an integrated valve.
