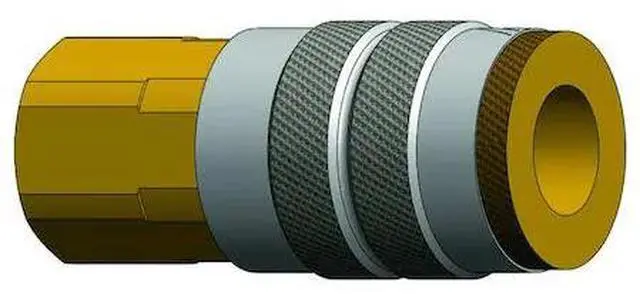

DIXON 4FF4 Female to Indust. Coupler,(F)NPT,Steel

The DIXON - 4FF4 is a quick connect hose coupling for connecting and disconnecting hose-to-hose or hose-to-equipment without requiring tools (tool-free operation per design). It includes a sleeve locking mechanism and includes a tubular valve to control fluid or air flow. Is intended for use with air, water, or fluids in pneumatic and hydraulic applications. The coupling follows the Industrial interchange standard and is compatible with hoses having a 1/2 inch inner diameter.

Key Features:

• - Body and coupling size: 1/2 inch with a 1/2 inch hose fitting size and female connection gender.
• - Material construction: Steel with zinc plated finish for surface treatment.
• - Seal material: Nitrile.
• - Maximum working pressure rated at 500 psi at 70°F (as specified).
• - Maximum flow rate: 2,576.83 L/min.
• - Maximum outside diameter of 1 1/4 inches and overall length of 3.06 inches.
• - Thread size: 1/2"-14 NPT connection type.
• - Rated operating temperature range: -40°F to 250°F.
