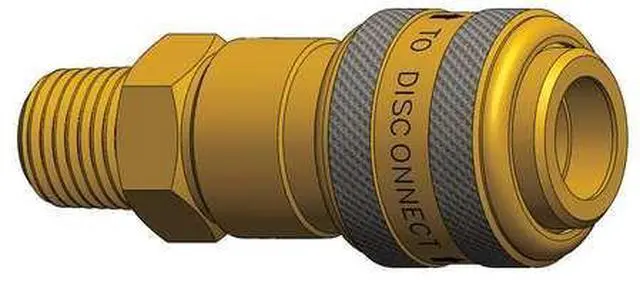

DIXON 3DM2-B Male to Indust. Coupler,(M)NPT,3/8,Brass

The DIXON - 3DM2-B is a hose coupling designed for tool-free connection and disconnection. The coupling features a male hose fitting and complies with the Industrial interchange standard. It includes an integrated valve with a prong-type mechanism to control fluid flow, for controlling fluid flow through the integrated valve.

Key Features:

• - Material: Brass construction for the main body.
• - Connection Type: Male NPT thread with a 1/4"-18 specification.
• - Coupling Size: 3/8 in with a socket component and sleeve locking mechanism.
• - Hose Fitting Size: 1/4 in inner diameter compatible.
• - Seal Material: Nitrile providing fluid sealing capability.
• - Finish: Zinc plated surface coating.
• - Maximum Working Pressure: 300 psi at 70°F.
• - Maximum Flow Rate: 1,274.25 liters per minute (under rated conditions).
• - Operating Temperature Range: From -40°F up to 250°F.
• - Overall Length: Measures 2.63 inches end to end.
• - Maximum Outside Diameter: 1.19 inches at the widest point.
