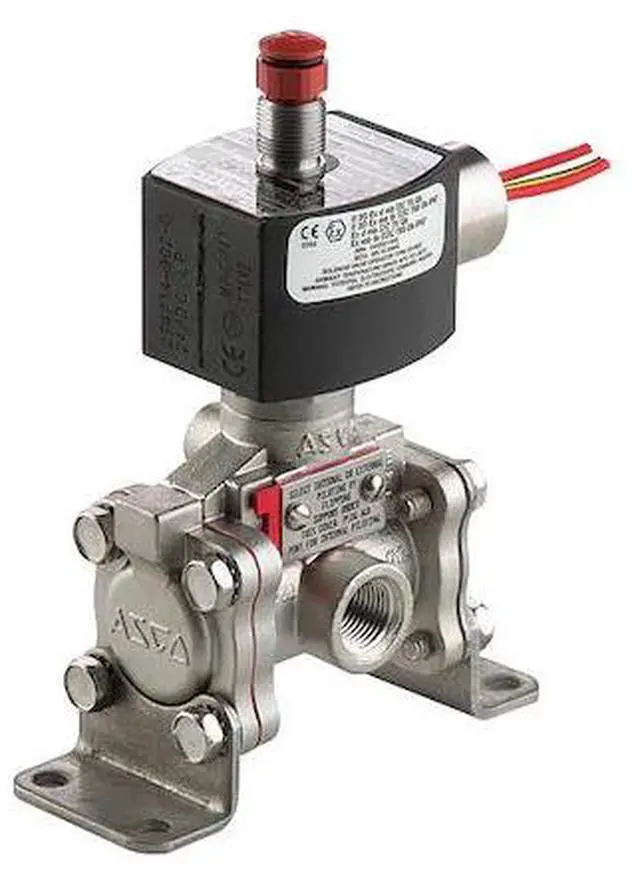

ASCO EVX8316G382MB17596 Solenoid Valve, 3-Way, 2-Position, Normally Closed, 3/8

The ASCO EVX8316G382MB17596 is a 3-way, 2-position solenoid valve designed for use with air, inert gases, and liquids. It operates as a normally closed, direct-acting valve with a diaphragm poppet design to control fluid flow. The valve includes the coil and sealing components required for operation and is constructed from 316 stainless steel with Environmental Rating: Hazardous, Indoor, Outdoor. It is compatible with systems requiring precise flow control at operating pressures ranging from a minimum differential of 15 psi to a maximum differential of 150 psi for air and inert gases, with a maximum fluid temperature of 140°F.

Key Features:

• - Valve Design: 3-Way/2-Position with Normally Closed configuration
• - Body Material: 316 Stainless Steel
• - Operation Type: Direct Acting
• - Valve Type: Diaphragm Poppet
• - Nominal Pipe Size: 3/8 in; Center Line Pipe Size: 2-7/8 in
• - Orifice Diameter: 5/16 in; Flow Coefficient (Cv): 3.97
• - Maximum Fluid Temperature: 140°F
• - Operating Pressure Differential: 15 psi minimum, 150 psi maximum (Air/Inert Gas)
• - Seal Material: NBR (Buna-N)
• - Coil Enclosure: Explosion Proof, Watertight
• - Coil Insulation Class: F
• - Voltage: 24V DC; Wattage: 1.4 W
• - Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Inlet and Outlet Connection Type: NPTF with NPT Thread Type
• - Environmental Rating: Hazardous, Indoor, Outdoor
• - Dimensions: Overall Height 6 in; Overall Length 2-1/16 in; Overall Width 3-1/4 in
• - Includes Coil and Seal
