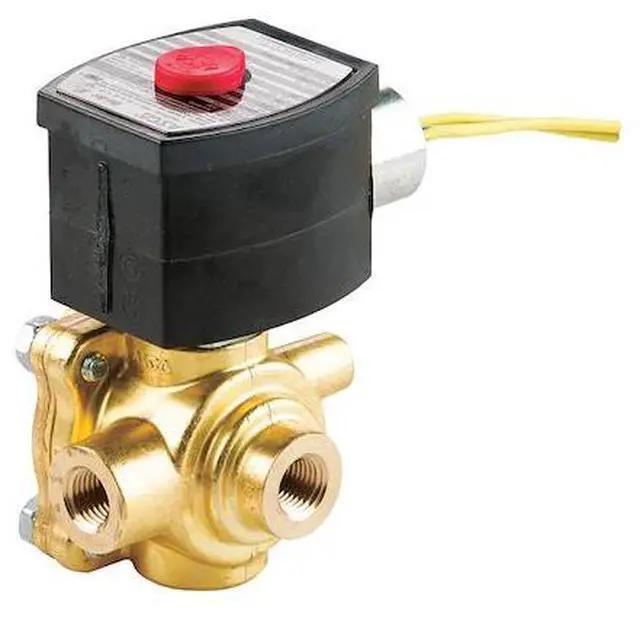

ASCO EFHB8342G001 Solenoid Valve, 4-Way, 2-Position, Universal, 1/4 in Pipe

The ASCO EFHB8342G001 is a direct-acting solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. Constructed with a brass body and FKM seal; Operating temperature ranges: ambient 32125°F; fluid temperature up to 160°F. The valve features a 1/4 inch nominal pipe size with NPTF inlet and outlet connections. Flow coefficient: Cv = 0.7. It operates at 120V AC with a coil insulation class H and includes the coil and seals. The valves 4-way, 2-position design with valve starting configuration: 4-way/2-position; mounting orientation: horizontal or vertical accommodates both mounting orientations. Coil enclosure: Explosion-proof, watertight; Environmental rating: Indoor and outdoor use.

Key Features:

• - Valve Type: NAMUR Mount, 4-Way/2-Position, Direct Acting
• - Body Material: Brass with FKM seal
• - Nominal Pipe Size: 1/4 in; Center Line Pipe Center Size: 2-1/2 in
• - Connections: Inlet and Outlet NPTF thread type
• - Operating Temperatures: Ambient 32 to 125°F; Fluid up to 160°F
• - Operating Pressure Differential: Maximum 125 psi for air/inert gas, 100 psi for light oil and water; Minimum 0 psi
• - Flow Capacity: Cv of 0.7 with a 3/16 in orifice diameter
• - Electrical: 120V AC, 60 Hz supply frequency, 20.1 W coil wattage, Class H coil insulation
• - Coil Enclosure: Explosion Proof, Watertight; Electrical Connections via 1/2 in conduit with 18 in leads
• - Environmental Rating: Indoor, Outdoor use
• - Includes: coil and seal
• - Mounting Orientation: Horizontal or Vertical
• - Dimensions: Overall Height 4-7/16 in; Length 2-5/8 in; Width 2-11/16 in
• - Standards: CSA, UL Listed
