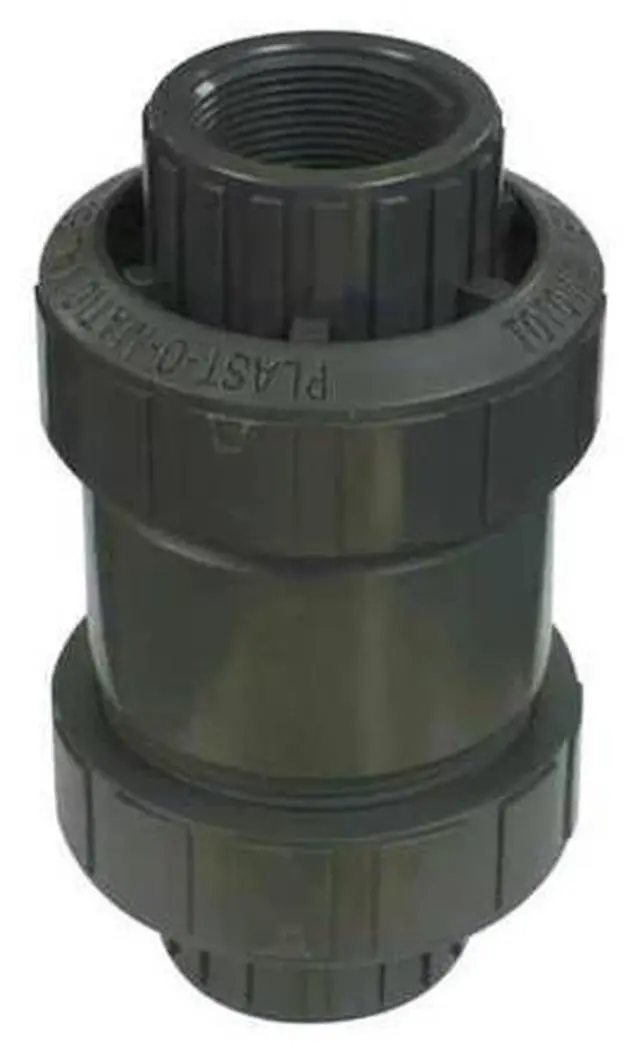

PLAST-O-MATIC CKS200VT-NC-PV Check Valve, CKS Series, 2 in, FNPT x Socket,

PLAST-O-MATIC CKS200VT-NC-PV is a 2 in inline check valve for one-way flow applications. This inline disc valve features a PVC body, is listed for corrosive media applications, and uses a poppet check mechanism with Viton/FKM sealing components. It can be mounted horizontally or vertically and operates at pressures up to 100 psi, with a cracking pressure of 1.000 to 1.500 psi.

Key Features:

• Valve type: Check valve with inline disc body design for one-way flow applications
• Size: 2 in nominal valve size with 2 in pipe/tube size
• Body material: PVC
• Application/media: Corrosive media
• Connection type: FNPT x Socket; side 1 female NPT, side 2 female socket
• Flow capacity: 45 gpm
• Cracking pressure: 1.000 to 1.500 psi
• Pressure rating: 100 psi maximum operating pressure; 100 psi at 75 degrees F maximum water pressure
• Temperature range: 32 degrees F to 140 degrees F
• Seal and seat material: Viton/FKM
• Check mechanism: Poppet
• Spring material: PFA-encapsulated stainless steel
• Mounting: Horizontal or vertical
• Silent-check design: Yes
• Overall length: 8.38 in
