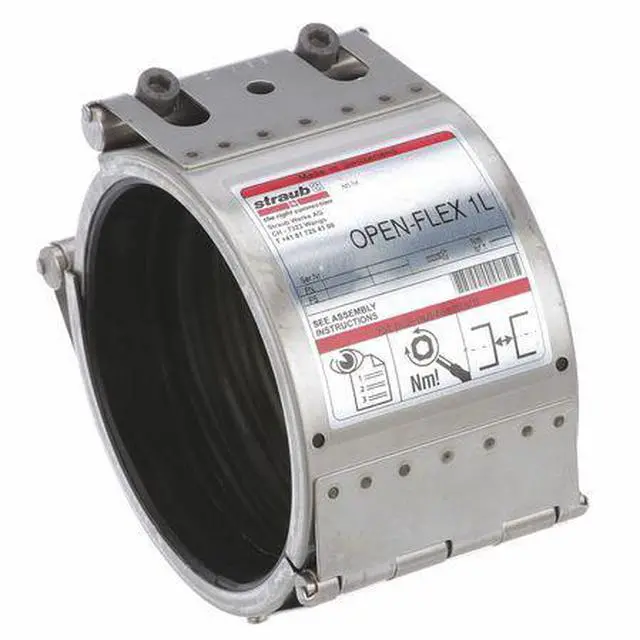

STRAUB STR35151 2 in 304 Stainless Steel Open-Flex Coupling, Axial Movement,

The STRAUB - STR35151 is an open flex wrap-around pipe coupling constructed of stainless steel with a polished finish. This coupling joins two 2-inch pipes in a straight line, forming a continuous flow path while accommodating axial movement. It includes an EPDM gasket to create a pressure-tight seal and is secured with two galvanized steel bolts sized 6mm Hex. The coupling is compatible with air, chemical products, fuel, gas, oil, hydrocarbons, solids, and water within the specified operating ranges. It supports a maximum operating pressure of 232 psi within a temperature range of -4 to 212 degrees Fahrenheit and meets ASTM 1476, TY2, CL2 or CL3 standards. Key Features:

• - Material Grade: stainless steel with a polished finish
• - Suitable for nominal 2-inch pipe size connections
• - Includes EPDM gasket to provide a seal under rated operating conditions
• - Bolt size: 6mm Hex, with two bolts per coupling
• - Overall fitting length: 3 inches
• - Maximum operating pressure rating: 232 psi
• - Rated temperature range: -4 to 212 degrees Fahrenheit
• - Compliant with low lead standards for potable water use
• - Vacuum rating: 28 inches
