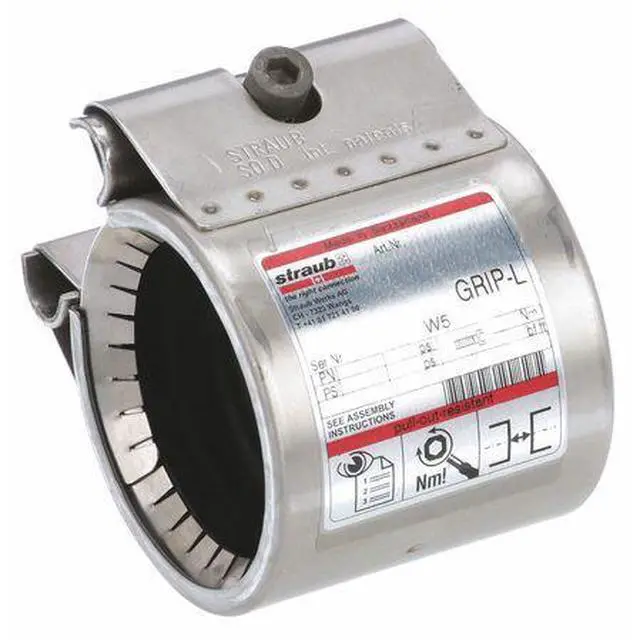

STRAUB G20200-SI 1-1/4 in 316 Stainless Steel Grip L Pipe Coupling, Polished

The STRAUB - G20200-SI is a stainless steel Grip L pipe coupling designed to join two pipes or tubes in a straight line, creating a continuous flow path. Constructed from 316 stainless steel with a polished finish, this coupling includes an EPDM gasket to form a seal without welding up to the maximum rated operating pressure of 232 psi. It accommodates limited axial movement and misalignment, operating within a temperature range of -4 to 212 degrees Fahrenheit and a maximum pressure of 232 psi. Compatible with air, water, hydrocarbons, and chemical products within the specified temperature and pressure limits.

Key Features:

• - Material grade: 316 stainless steel with polished finish for corrosion resistance
• - Nominal pipe size: 1-1/4 inches
• - Overall length: approximately 2-3/8 inches (2 13/32 inches fitting length)
• - Includes EPDM gasket
• - Bolted housing with two 6mm hex bolts made of 316 stainless steel
• - Maximum operating pressure: 232 psi
• - Temperature range: -4 to 212 degrees Fahrenheit
• - Compliant with low lead certification standards
• - Conforms to ASTM 1476, TY2, CL2 or CL3 standards
• - Vacuum rating: 28 inches of Hg
