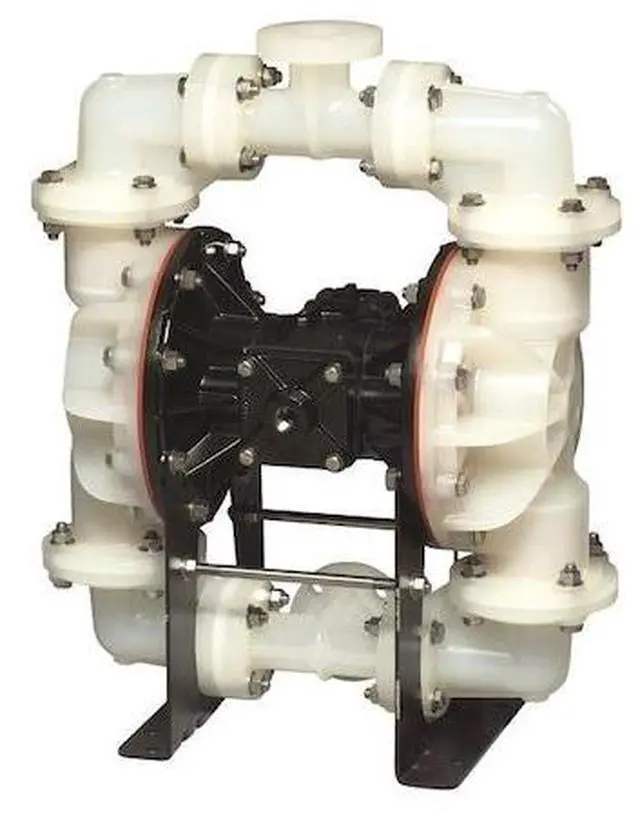

SANDPIPER S15B3P2PPUS000. Double Diaphragm Pump, Polypropylene, Air Operated,

This item is an air-operated double diaphragm pump rated for transferring fluids through a pneumatic drive system. It features a polypropylene housing with PTFE diaphragms and ball-style PTFE valves, along with flanged inlet and discharge connections. The pump is rated for operation within the specified air pressure, flow rate, and temperature limits and has self-priming specifications within the stated lift ranges.

Key Features:

• Pump Type: Air-operated double diaphragm pump.
• Flow Capacity: Flow rate is specified up to 125 gpm based on operating air pressure.
• Operating Pressure: Rated for air intake and operating pressures up to 100 psi.
• Temperature Rating: Media temperature rating up to 180°F.
• Priming Capability: Self-priming specifications include up to 15 ft wet lift and 19-1/2 ft dry lift.
• Construction Materials: Polypropylene housing with PTFE diaphragms and PTFE ball valves.
• Connections: 1-1/2 in flanged media intake and discharge with a 3/4 in FNPT air intake.
• Media Handling: Specified for intermittent or on-demand operation with moderately abrasive fluids and suspended solids.
• Certifications: Listed with ATEX, CE, and EAC certifications.
