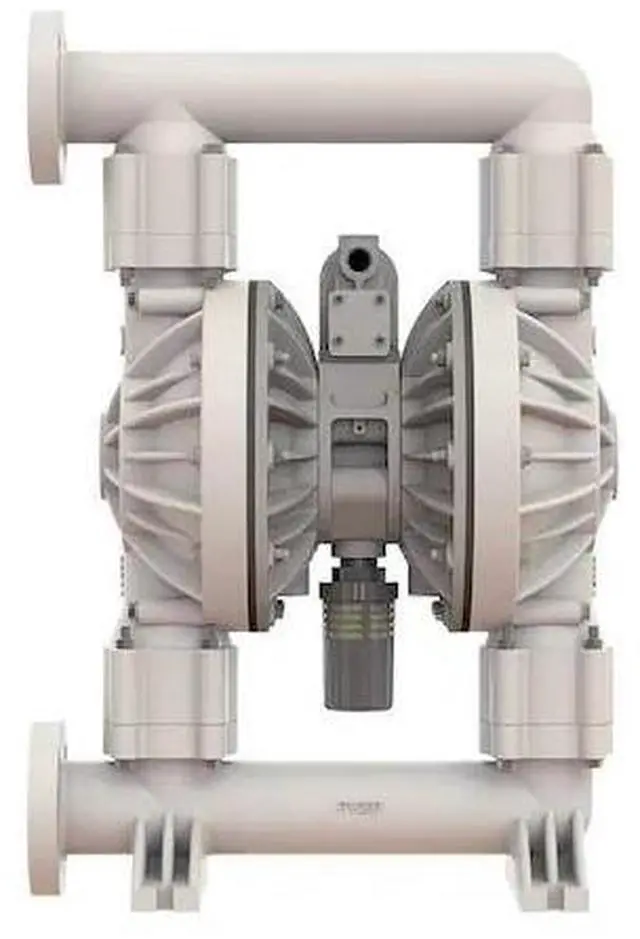

VERSA-MATIC E2PA6D669C Double Diaphragm Pump, Polypropylene, Air Operated,

This item is an air-operated double diaphragm pump with a polypropylene housing and flanged inlet and discharge connections. It uses a bolted pump assembly with Santoprene diaphragms and ball-style valves to move fluids through a pneumatic operating system. The pump is self-priming within specified lift limits and is configured to handle fluids and suspended solids within defined pressure, temperature, and flow ranges.

Key Features:

• Pump Type: Air-operated double diaphragm pump.
• Flow Capacity: Maximum flow rate specified up to 177 gpm, with published flow rates across operating pressures up to 100 psi.
• Operating Pressure: Rated for air intake and operating pressures up to 100 psi.
• Priming Capability: Self-priming up to 32 ft wet lift and 16 ft dry lift.
• Construction Materials: Polypropylene housing with Santoprene diaphragms and Santoprene ball valves.
• Connections: 2 in flanged inlet and discharge with a 1/2 in FNPT air intake connection.
• Media Handling: Supports fluids with solid particles up to 1/4 in diameter.
• Temperature Rating: Maximum media temperature specified at 175°F.
