ANL Fuse Holder with 20 Amp Fuse DC 32 Volt for Automotive Car Vehicle Audio Amplifier Inverter Replacement with Clear Insulated Cover 2pcs

Features:

GoldenKEY_TAB tone plated metal sheet constructionKEY_TAB fuse, durable finish and conductivity.

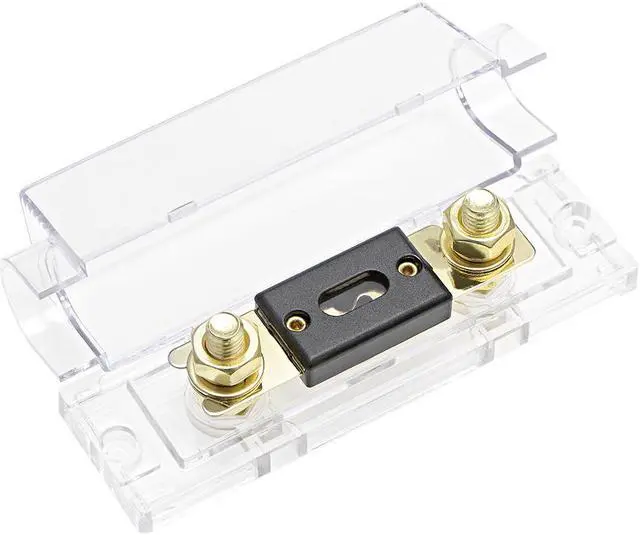

Cover breakouts allow wire access in any direction. Swing out design allows replacement of the fuse without removing fastener.

For most applications, the fuse should be sized at approximately 1.3 times the rated power of the object being protected.

ANL fuse holder is widely applied to inverter, car audio amplifier and other high current applications.

KEY_TAB

NOTE:

1. Shut down power before your replacement.

2. Check your original size of fuse block before buying: body diameter, body length, rated current, rated voltage.

KEY_TAB

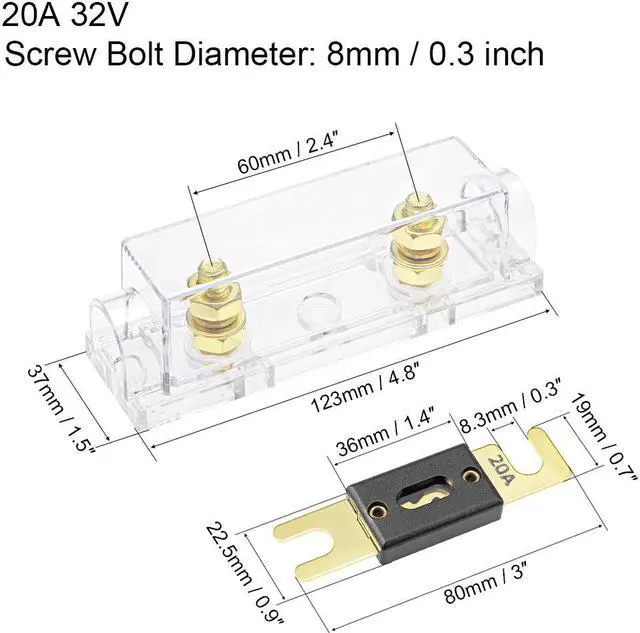

Specifications:

Fuse:

Rated Voltage: DC 32V

Rated Current: 20A

Fork Width:KEY_TAB 19mm / 0.7 inch

U-shape Width: 8.3mm / 0.3 inch

Body Length: 36mm / 1.4 inch

Overall Size: 80x22.5x9mm/ 3x0.9x0.4 inchKEY_TAB (L*W*T)

Fuse Holder:

Screw Bolt Diameter: 8mm / 0.3 inch

Screw Center Distance: 60mm / 2.4 inch

Mounting Hole Diameter: 4.5mm / 0.2 inch

Mounting HoleKEY_TAB Distance: 113mm / 4.4 inch

Holder Panel Size: 123x37x38mm / 4.8x1.5x1.5KEY_TAB inchKEY_TAB (L*W*H)

KEY_TAB

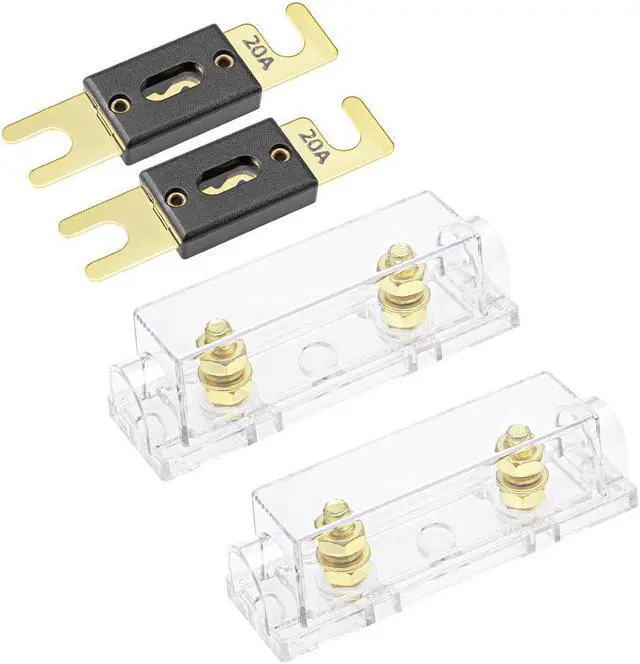

Package Contents:

2 x ANL Holder

2 x Blade Fuse
