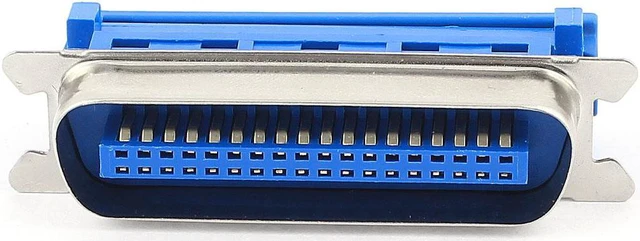

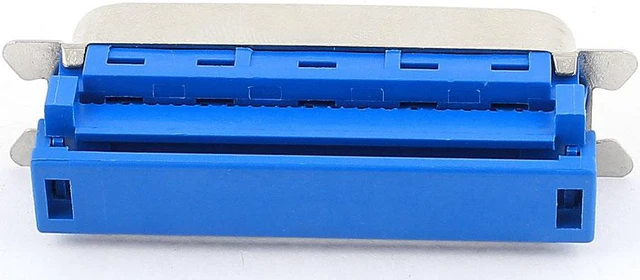

Unique Bargains CN 36 Pin IDC Male Centronics Connector Printer Flat Ribbon Cable Adapter 2.54mm
- Item #: 9SIV0KK4V06565
- Mfr. Part #: a15030600ux0540
- Pin Pitch : 2.54mm
- Total Size : 68 x 25 x 15mm/2.7" x 1" x 0.6"(L*W*H)
- Weight : 18g
- Package Content : 1 x CN36 Connector
+
+
Overview
Specs
Reviews
- Rated load: DC 30V 0.5A
- Contact Resistance: 30m Ohm Max.
- Insulation Resistance: 100m Ohm mini at DC 500V
- Dielectric Withstand Voltage: AC 500V per minute
- Temperature Range: -40C to +70C
- Insertion and Extraction Force: 3~20N
- Parallel Port , 36Pin with gold contacts, crimp contacts, IDC type, fit CN 57 series printer.
- An easy way to convert a 36 Pin female Parallel Port Cable
- These 36 Pin male Crimp Centronics Connectors are used to terminate the connection type of flat ribbon cable.
- They can easily be used to make a custom length cable as well as create a custom pinout, creating a durable connection for all applications.
