Laser Industrial Water Chiller for CO2 Cutter Tube Laser Engraver
- Item #: 9SIVB0EJSS4624
- Mfr. Part #: BE9631GYQ5
- The water cooler chiller features a stable performance with a 6L large-capacity cooling box. Equipped with a precision scale, you can fill with water according to the scale.

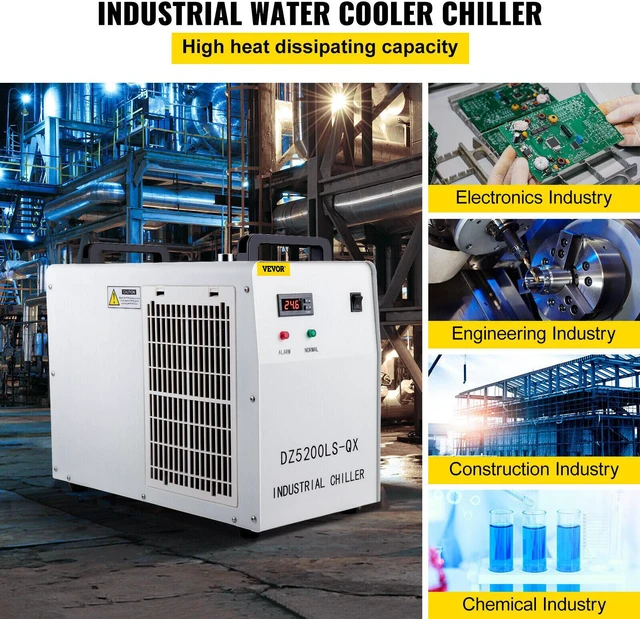

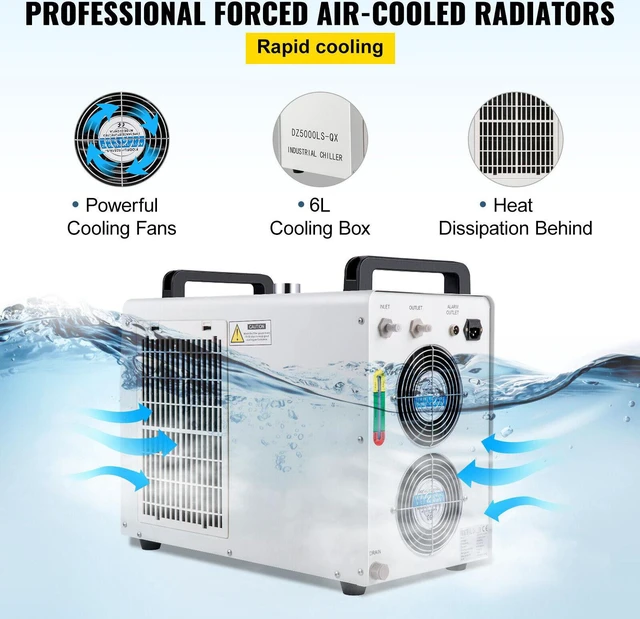

- Professional forced air-cooled radiators inside quickly takes away the heat. High heat dissipating capacity decides that the water cooler chiller is not easy to be blocked.

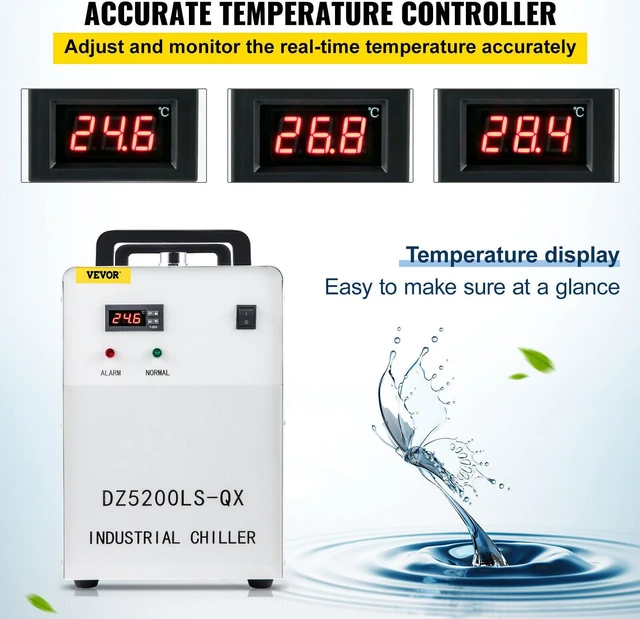

- This CNC machine industrial chiller equips an accurate temperature controller. You can adjust and monitor the real-time temperature accurately to ensure the working status of the machine.

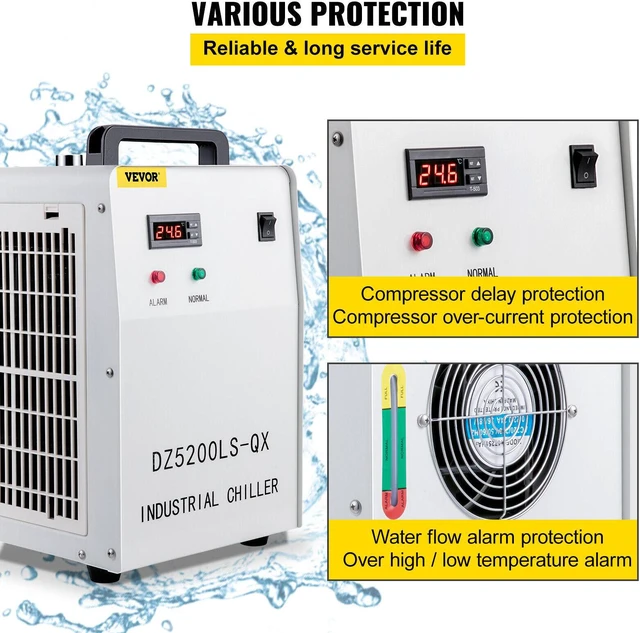

- This laser engraver water chiller has various protection, and early warning functions water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection.

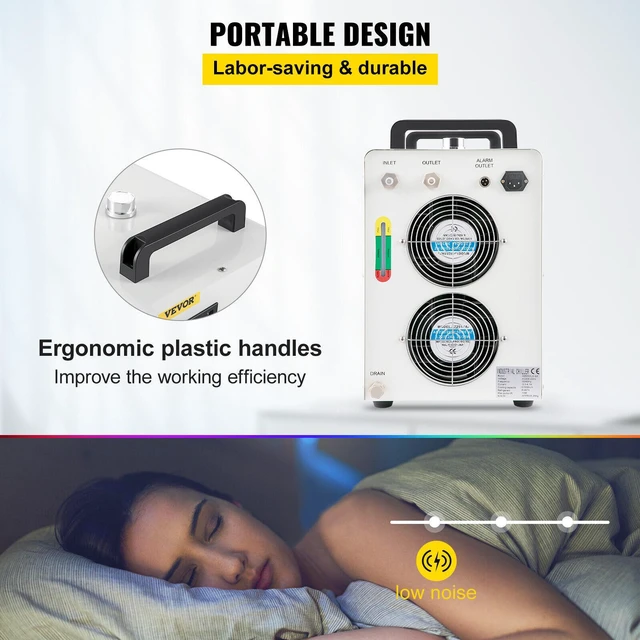

- Rubber handles are super durable and reliable. The ergonomic design makes it very comfortable to hold, saving time and effort as well as improving the working efficiency.
+
+
Overview
Specs
Reviews

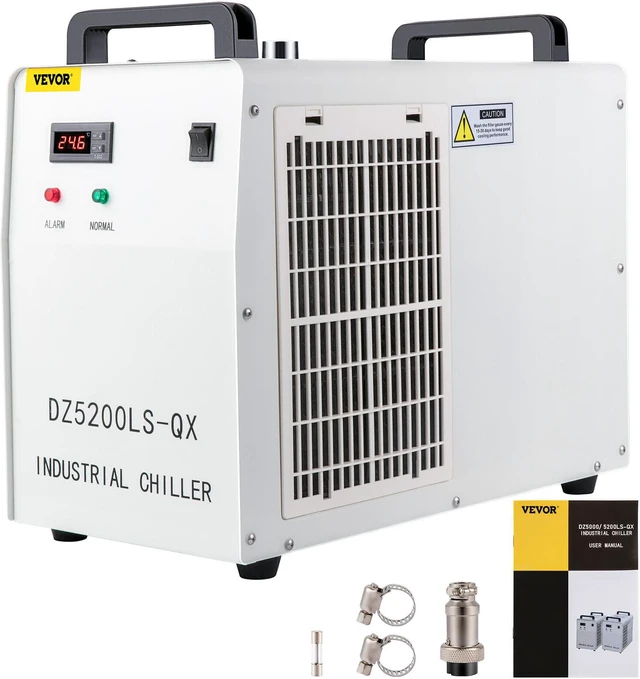

DZ5200LS-QX Series is a professional cooling machine, easy to install and operate, compact, and easily movable. It is designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine.
Model: DZ5200LS-QX
Voltage: 110V
Frequence: 60Hz
Current: 4.5 ~7A
Tank Capacity: 1.6 Gallon / 6 L
Compressor Power: 0.75KW, 0.75HP
Refrigerating Capacity: 5186Btu/h, 1.52KW, 1307Kcal/h
Refrigerant: R-410a
Refrigerant Charge: 11.6 - 12.3 oz / 330-350g
Precision: ± 32.54 / 0.3
Reducer: Capillary
Pump Power: 48W
Maximum Flow: 3.17 Gal/min (12L/min)
Inlet and Outlet: External 0.4 in / 10mm Nylon Connector
Maximum Pumping Lift: 13.1 Yards / 12 m
Packing Dimensions: 28.3 x 17.3 x 24.4 in / 72 x 44 x 62 cm

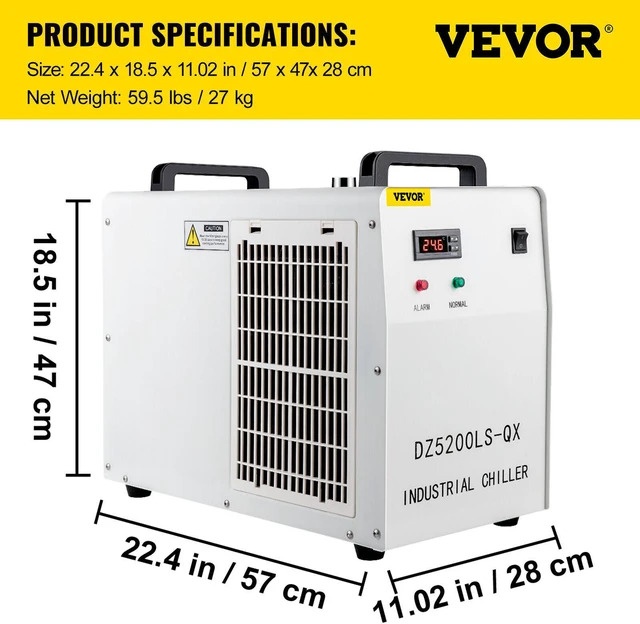

Product Size: 22.4 x 11.02 x 18.5 in / 57 x 28 x 47 cm
Protection: Over Current Protection for compressor, Over-Flow & Over-Heat Alarm
Specifications
Model: DZ5200LS-QX
Voltage: 110V
Frequence: 60Hz
Current: 4.5 ~7A
Tank Capacity: 1.6 Gallon / 6 L
Compressor Power: 0.75KW, 0.75HP
Refrigerating Capacity: 5186Btu/h, 1.52KW, 1307Kcal/h
Refrigerant: R-410a
Refrigerant Charge: 11.6 - 12.3 oz / 330-350g
Precision: ± 32.54 / 0.3
Reducer: Capillary
Pump Power: 48W
Maximum Flow: 3.17 Gal/min (12L/min)
Inlet and Outlet: External 0.4 in / 10mm Nylon Connector
Maximum Pumping Lift: 13.1 Yards / 12 m
Packing Dimensions: 28.3 x 17.3 x 24.4 in / 72 x 44 x 62 cm
Product Size: 22.4 x 11.02 x 18.5 in / 57 x 28 x 47 cm
Protection: Over Current Protection for compressor, Over-Flow & Over-Heat Alarm
