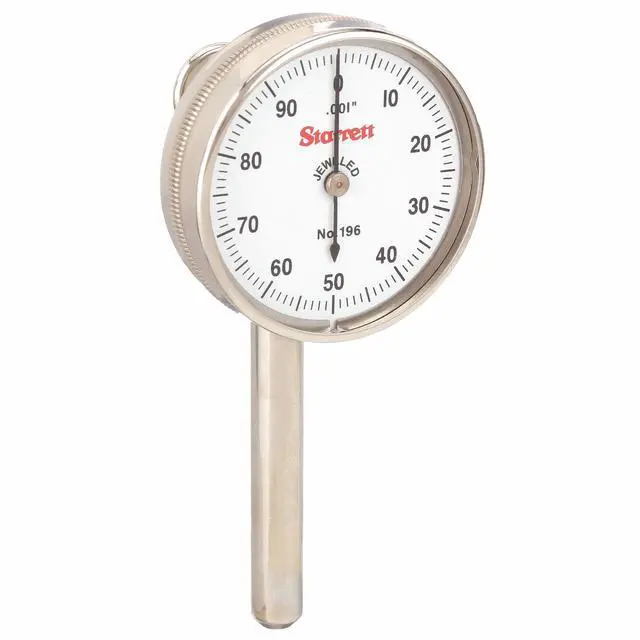

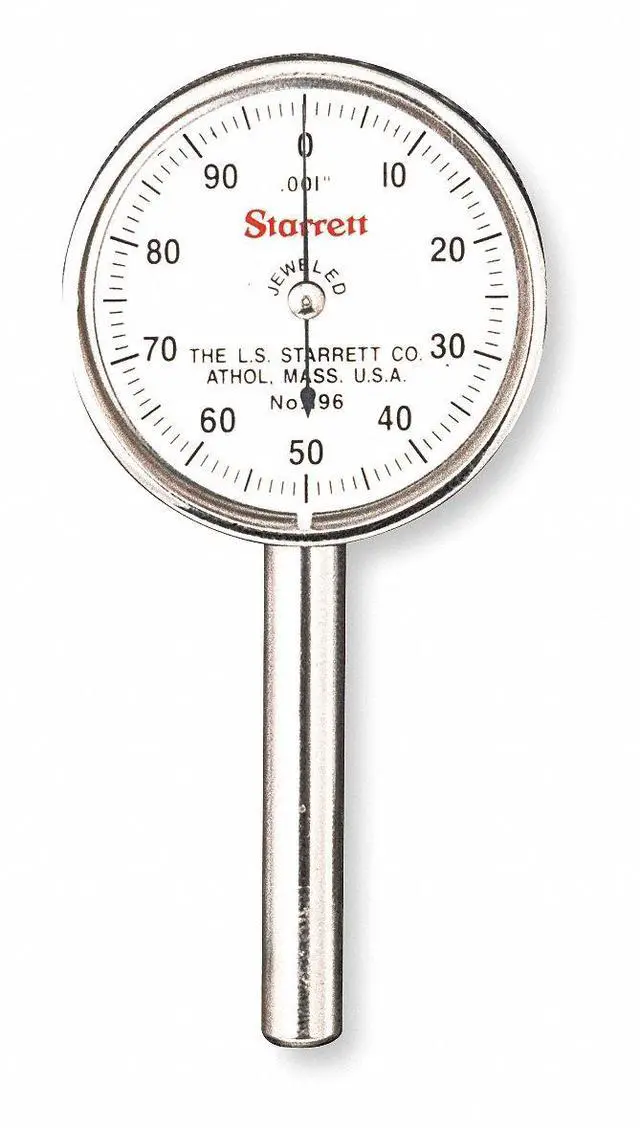

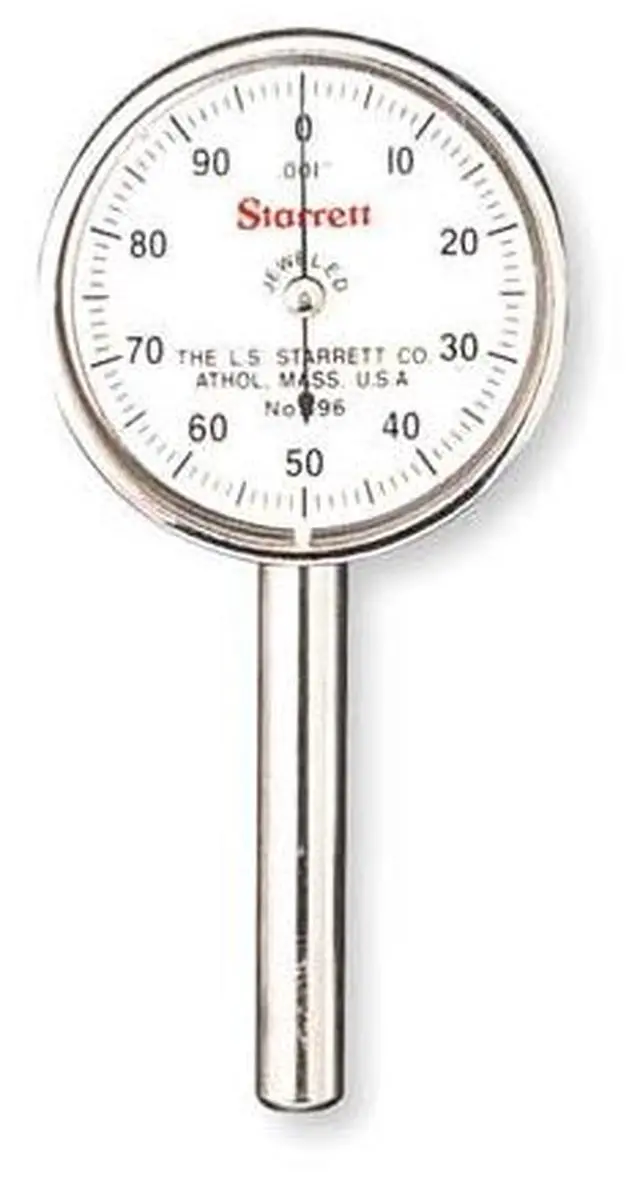

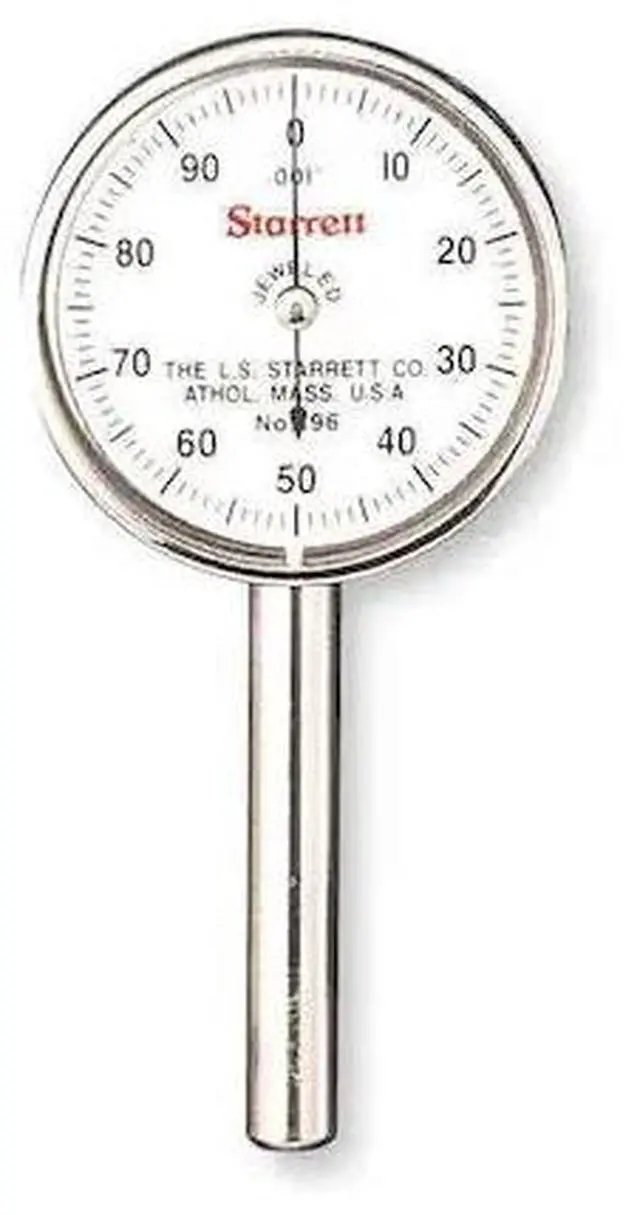

STARRETT 196B1 Dial Test Indicator,Vert,0 to 0.200 In

The STARRETT 196B1 is a mechanical back plunger dial indicator from the 196 series for inch measurements from 0 to 0.200 in. It has 0.001 in graduations, a continuous 0-100 dial reading, and a 1-1/2 in white dial for reading measurement changes. This universal back type indicator uses a straight post arm and includes contact points and an adaptor for setup.

Key Features of the STARRETT 196B1 Back Plunger Dial Indicator:

• Measurement Range: 0 to 0.200 in for indicating variation across a measured surface or part.
• Graduations: 0.001 in for fine incremental readings.
• Dial Reading: 0-100 continuous dial with 0.1 in per revolution.
• Indicator Style: Back plunger design with universal back configuration.
• Dial Size and Color: 1-1/2 in white dial for clear visual reference.
• Contact Point Diameter: 0.375 in.
• Shank Diameter: 1/4 in (6.3 mm).
• Bearing Type: Plain bearing mechanical operation.
• Finish: Satin chrome finish on the indicator body.
• Included Accessories: Supplied with contact points and adaptor.
• Included Documentation: Certificate of inspection included.
