Network Cable Tester, Poe Cable Tester for CAT5e/CAT6/CAT6a, Ethernet Network Tester with NCV, NF-8209 Network Cable Tracker, Test Fault Distance Location and Length Measurement by TDR
- Item #: 9SIV36AKE32355
- Mfr. Part #: ID-NBOBGHS560
- Three scan modes:NF-8209 network cable tester supports AC filter mode/ Analog mode/ PoE mode.
- PoE testing:The PoE Tester can test the information of standard PoE device, such as POE voltage, power supply polarity, power supply mode and also the type of PSE(af or at standard).
- Hub blink:This network cable tester Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
- Length measurement:Cable length testing accuracy of rj45 wire tracer can be up to 98% and 200 m.
- Cable continuity testing & NCV:Ethernet network tester can test physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V).
+
+
Overview
Specs
Reviews

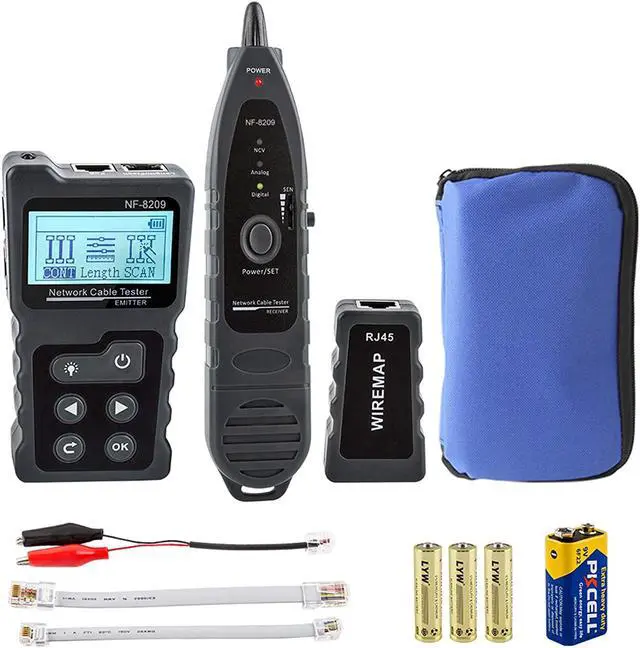

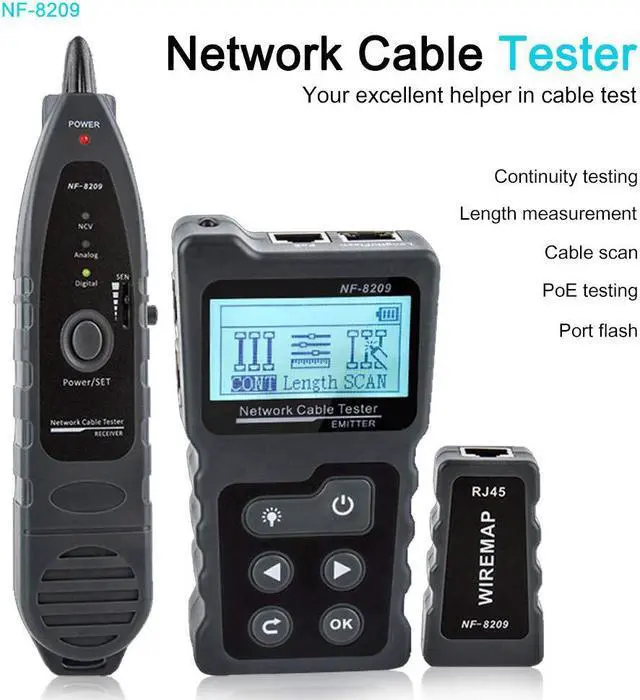

NF-8209 Network Cable Tester
NF-8209 Network Cable Tester has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means its equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement,cable faults testing,PoE testing, hub blink and NCV function.

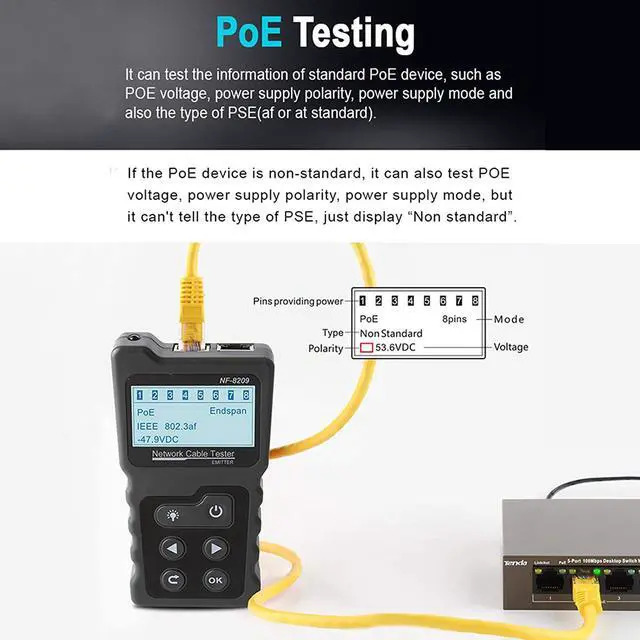

POE Testing
identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard). Test CAT5e, CAT6, CAT6a (STP & UTP)

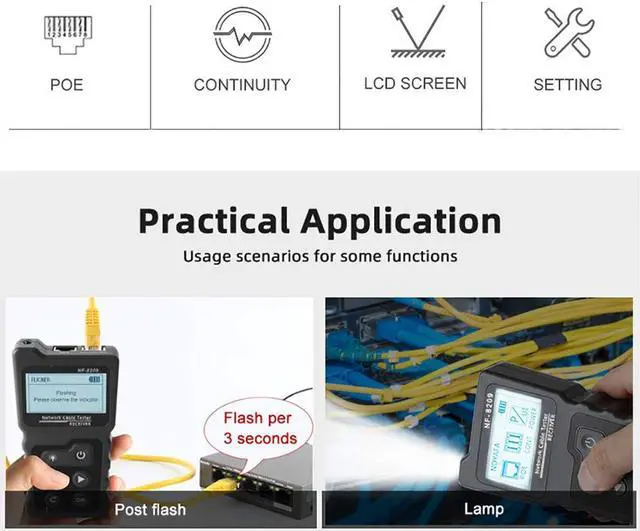

Port Flash
Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/switch.

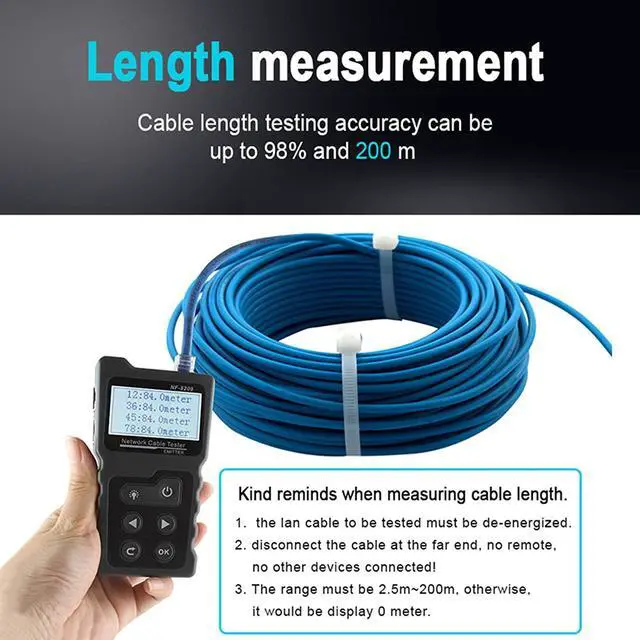

TDR techonology Lenth Measurement
Use TDR techonology for cable length test. Cable length testing accuracy can be up to 98%. Please note testing range must be 2.5m-200m, otherwise it would display 0 meter.

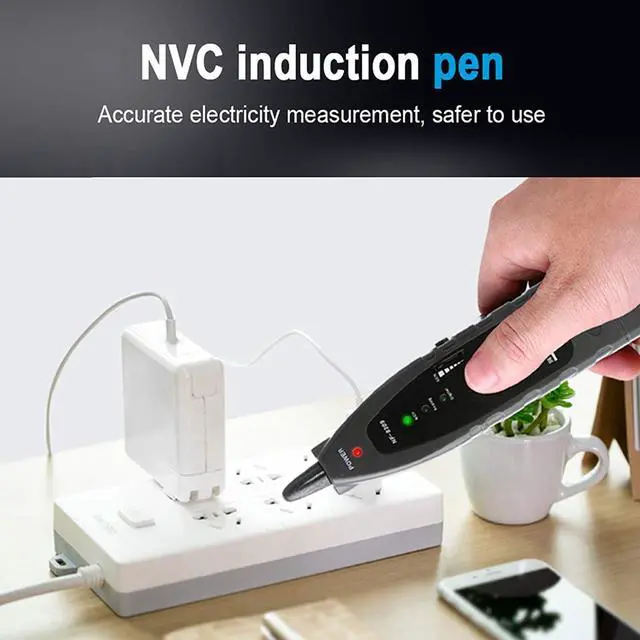

NVC Induction Pen
NVC induction pen design, accurate electricity measurement, safter to use.

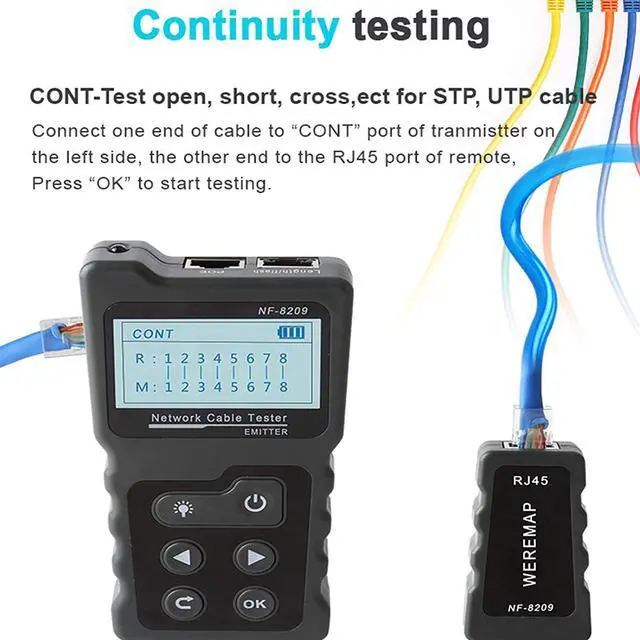

Continuity Testing
CONT-Test open, short, cross, etc for STP, UTP cable. Detect AC voltage presence (50V-1000V)
Three Cable Scan Mode
Three scan modes selectable: Digital mode/ Analog mode/ PoE mode
LED Lighting
Emitter and receiver all have lighting function. It can solve the trouble of dark work.
Possible results on the line
If the LCD screen display "Cable Open", there are several reasons for this.
NF-8209 Network Cable Tester has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means its equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement,cable faults testing,PoE testing, hub blink and NCV function.
POE Testing
identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard). Test CAT5e, CAT6, CAT6a (STP & UTP)
Port Flash
Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/switch.
TDR techonology Lenth Measurement
Use TDR techonology for cable length test. Cable length testing accuracy can be up to 98%. Please note testing range must be 2.5m-200m, otherwise it would display 0 meter.
NVC Induction Pen
NVC induction pen design, accurate electricity measurement, safter to use.
Continuity Testing
CONT-Test open, short, cross, etc for STP, UTP cable. Detect AC voltage presence (50V-1000V)
Three Cable Scan Mode
Three scan modes selectable: Digital mode/ Analog mode/ PoE mode
LED Lighting
Emitter and receiver all have lighting function. It can solve the trouble of dark work.
Possible results on the line
If the LCD screen display "Cable Open", there are several reasons for this.
