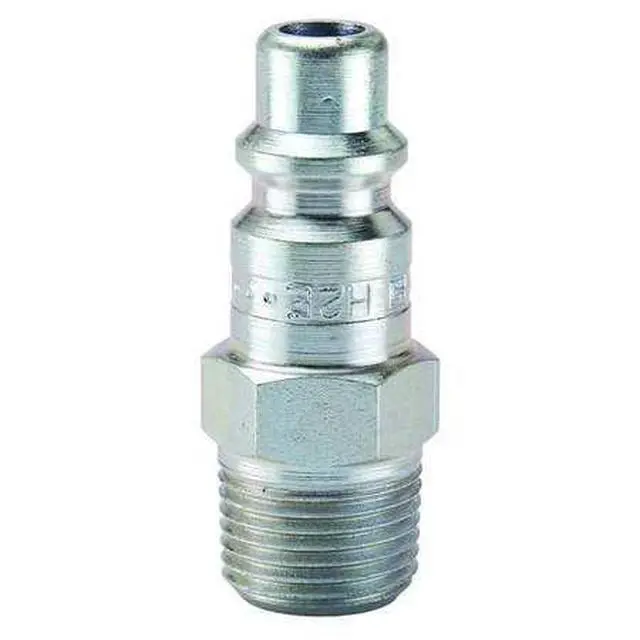

PARKER H2E-F Coupler Plug,Steel,MNPT,1/2 In. Pipe

The PARKER - H2E-F is a quick-connect hose coupling for pneumatic applications. It supports tool-free connection and disconnection using a push/pull locking mechanism, providing a seal at the connection interface (leak resistance not guaranteed). Maximum working pressure: 300 psi at 70°F. Operating temperature range: -40°F to 250°F. Constructed from steel with a trivalent chrome finish, this coupling operates within these specifications and connects with a 1/2"-14 NPT male threaded connection, conforming to the Industrial interchange standard.

Key Features:

• - Coupling Type: Plug (male half of the quick connect fitting)
• - Application: Pneumatic
• - Material: Steel with trivalent chrome finish
• - Hose Fitting Gender: Male
• - Hose Fitting Size: 1/2 in
• - Thread Size: 1/2"-14 (male NPT)
• - Coupling Size: 3/8 in
• - Max. Working Pressure: 300 psi @ 70°F
• - Max. Flow Rate: 1,415.84 liters per minute
• - Overall Length: 2.06 in (2 1/16 in)
• - Max. Outside Diameter: 1 in
• - Temperature Range: -40°F to 250°F
