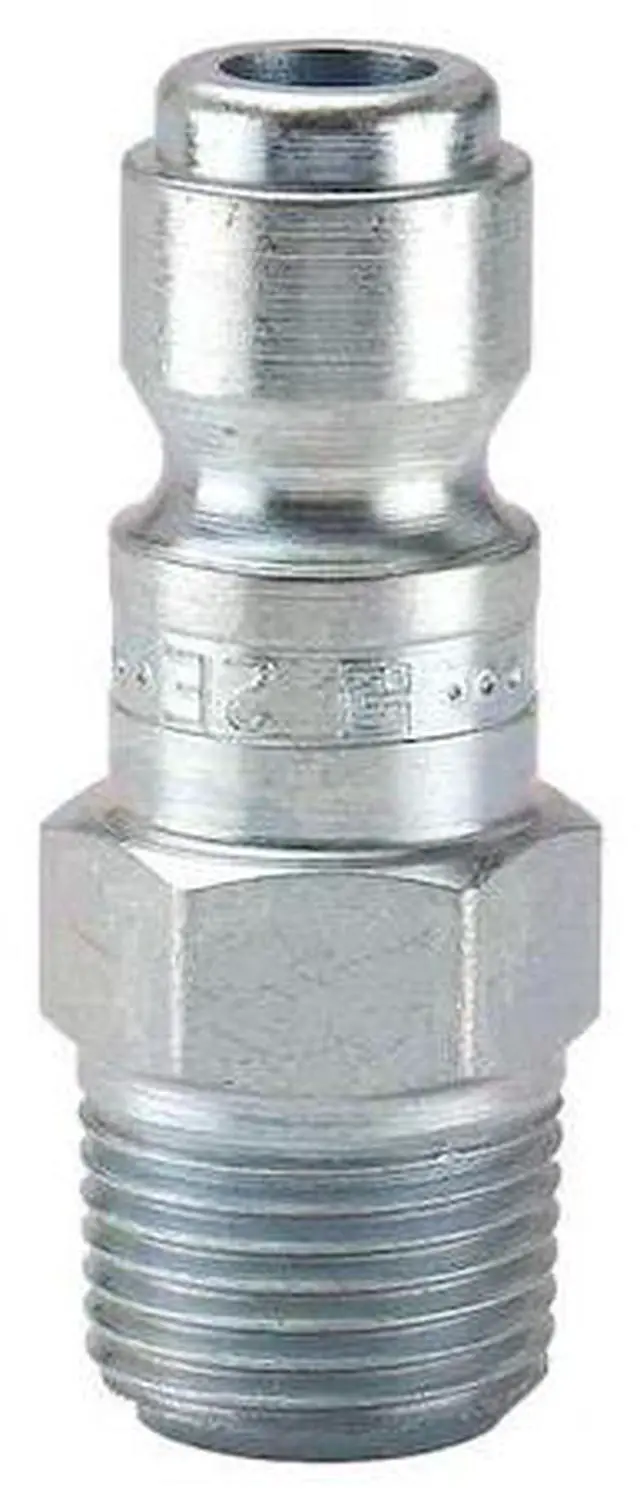

PARKER 0E Coupler Plug,Steel,MNPT,1/4 In. Pipe

The PARKER - 0E is a hose coupling for pneumatic applications with a sleeve locking mechanism for tool-free connection and disconnection. The coupling provides connection and disconnection via a sleeve locking mechanism. It supports tool-free connection and disconnection using a sleeve locking mechanism. The coupling is compatible with 3/8-inch nominal connections and features a male hose fitting of 1/4 inch size with 1/4"-18 thread size. The fitting is made of steel with a trivalent chrome finish and has a maximum working pressure of 300 psi at 70°F. It operates within a temperature range of -40°F to 250°F and supports a maximum flow rate of 1,415.84 liters per minute. The overall length of the fitting is 1.88 inches and it has a maximum outside diameter of 0.75 inch. The coupling is intended to interchange with Tru-Flate-Automotive standard connections and does not include an internal valve component.

Key Features:

• - Application: Pneumatic
• - Connection Type: NPT
• - Coupling Locking Type: Sleeve
• - Coupling Size: 3/8 in
• - Hose Fitting Gender: Male
• - Hose Fitting Size: 1/4 in
• - Material: Steel with Trivalent Chrome finish
• - Max. Working Pressure @ 70°F: 300 psi
• - Max. Flow Rate: 1,415.84 lpm
• - Temperature Range: -40°F to 250°F
• - Overall Length: 1.88 in
• - Max. Outside Diameter: 0.75 in
• - Interchange Type: Tru-Flate-Automotive
• - Includes Valve: No
