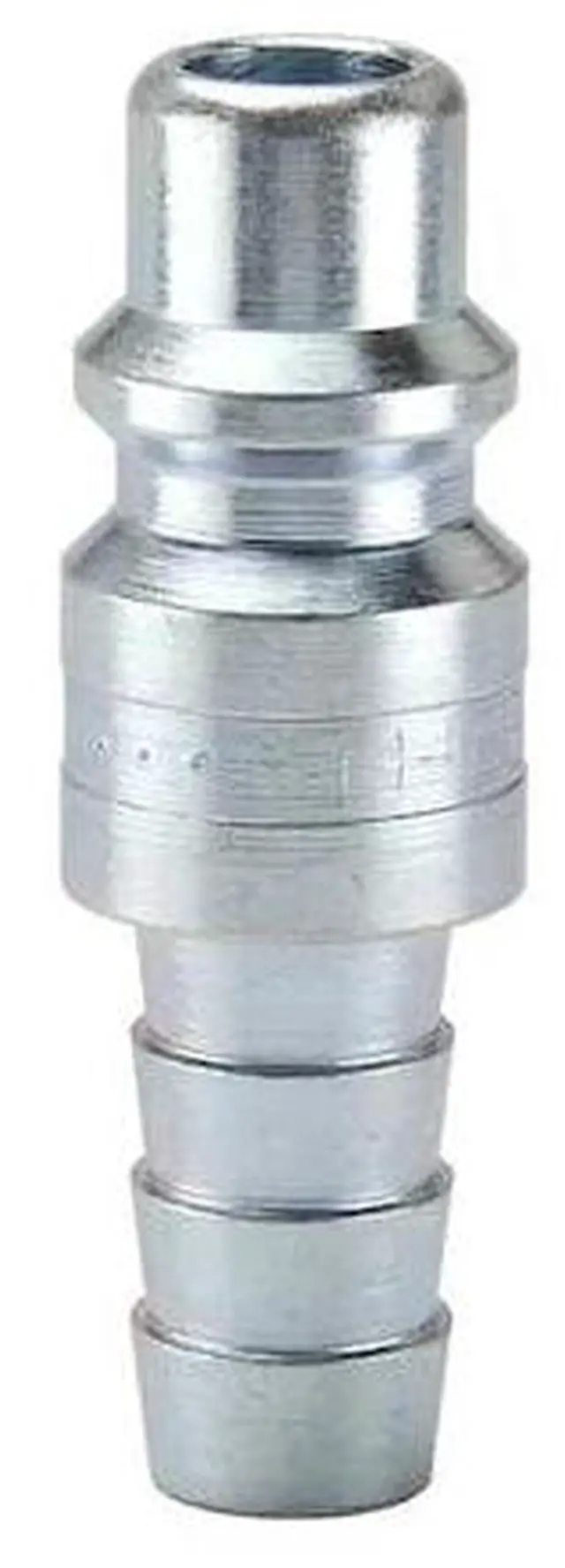

PARKER H4F Coupler Plug, Steel, Hose Barb, 110 cfm, For Hose I.D.: 3/8 in

PARKER - H4F is a quick connect hose coupling. The fitting provides a quick-connect mechanism that permits tool-free hose connection and disconnection using a male plug with a hose barb connection type. The fitting accommodates hoses with a 3/8 in inner diameter and mates with a 1/2 in Industrial interchange quick-connect coupling. Constructed from steel with a trivalent chrome finish; connection sealing is based on the rated configuration. The connection is rated for sealed connections and is compatible for use within the specified temperature range.

Key Features:

• - Application: Pneumatic
• - Hose barb connection type with male hose fitting gender
• - Barb size and hose fitting size: 3/8 in
• - Coupling size and body size: 1/2 in
• - Maximum flow rate: 3,114.85 liters per minute
• - Maximum working pressure: 300 psi at 70°F
• - Overall length: 2.38 inches
• - Material: Steel with trivalent chrome finish
• - Temperature range: -40°F to 250°F
• - Interchange type: Industrial
• - Includes no valve
• - Maximum outside diameter: 11/16 in
