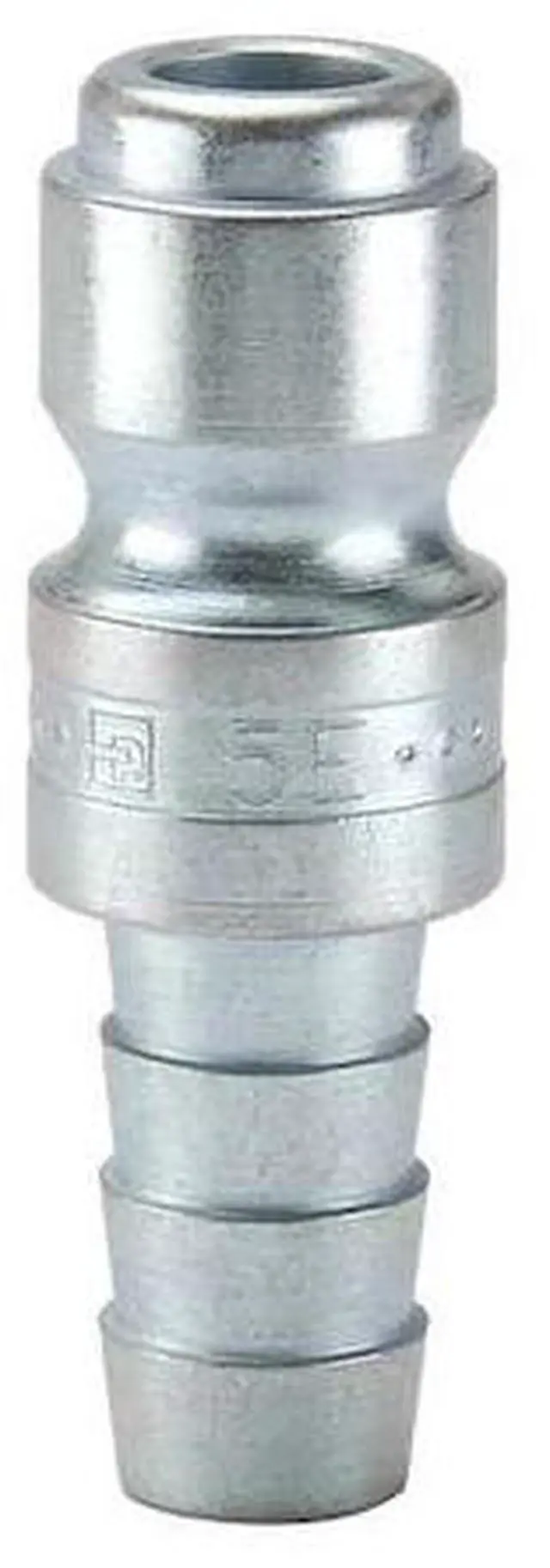

PARKER 5F Coupler Plug,Steel,Hose Barb,110 cfm

The PARKER - 5F is a hose coupling designed for pneumatic applications, enabling rapid connection and disconnection of hoses or equipment. It utilizes a sleeve locking mechanism for a connection intended for compressed air service (leak performance not guaranteed). The product is made of steel with a trivalent chrome finish and features a male hose barb connection sized for 1/2 inch inner diameter hoses. Its interchange type is Tru-Flate-Automotive, compatible with mating components that conform to the stated Tru-Flate-Automotive standard.

Key Features:

• - Application: Pneumatic use for air lines.
• - Connection Type: Hose barb, male fitting.
• - Barb Size and Hose I.D.: 1/2 in.
• - Coupling Size and Body Size: 1/2 in quick connect air coupling size and body size.
• - Material: Steel construction with trivalent chrome finish.
• - Coupling Locking Type: Sleeve locking mechanism.
• - Maximum Flow Rate: Maximum flow rate: 3,114.85 L/min under rated conditions.
• - Maximum Working Pressure: 300 psi at 70°F (rated).
• - Temperature Range: Temperature rating is -40°F to 250°F.
• - Maximum Outside Diameter: 11/16 in.
• - Overall Length: 2.38 in.
• - Includes Valve: No integrated valve included.
• - Interchange Type: Tru-Flate-Automotive standard.
