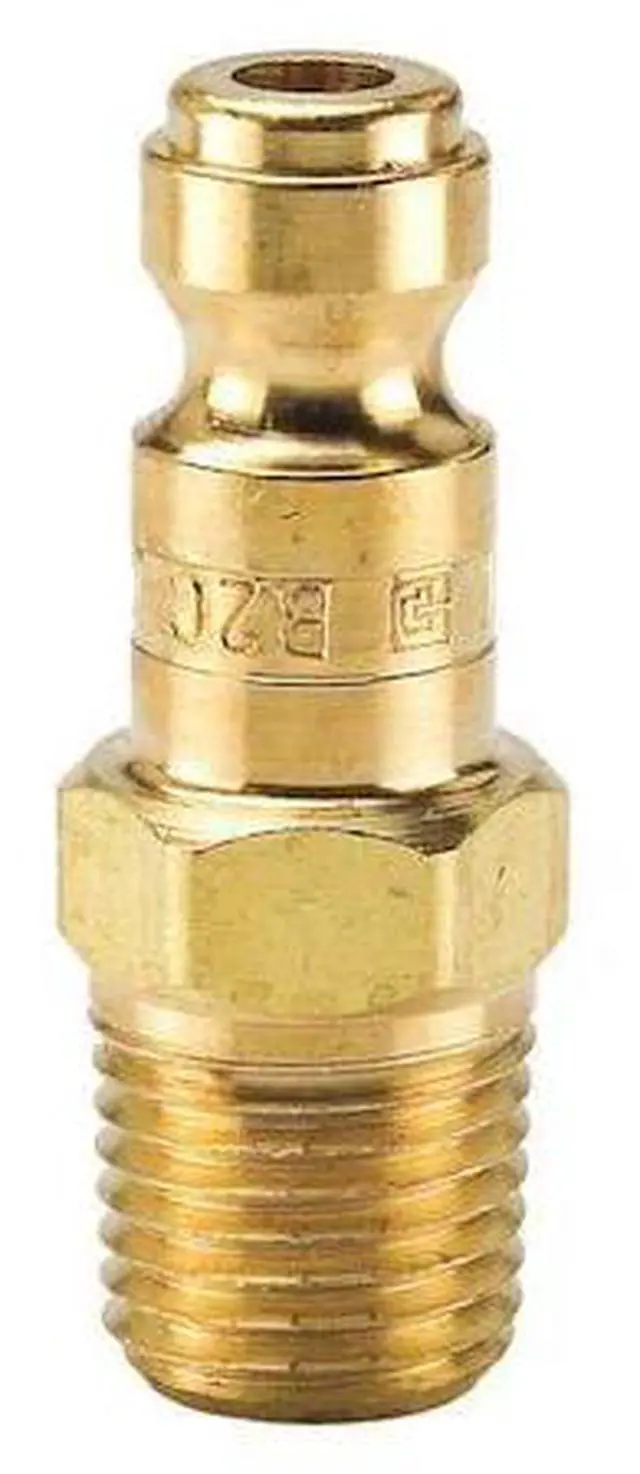

PARKER B2C Coupler Plug,Brass,MNPT,1/4 In. Pipe

The PARKER - B2C is a quick-connect hose coupling for pneumatic applications. It features a male plug coupling with a 1/4-inch NPT connection and a 1/4-inch hose fitting size. Constructed from brass, it uses a sleeve locking mechanism for push/pull connection and disconnection without a tool to help provide sealing via a nitrile O-ring for leak prevention during fluid or air transfer. This quick connect fitting is compatible with equipment that uses the Tru-Flate-Automotive interchange standard and is configured without an integrated valve component.

Key Features:

• - Material: Brass construction for the main body.
• - Coupling Type: Male plug with 1/4 in NPT connection size and 1/4 in hose fitting size.
• - Coupling Locking Type: Sleeve enables push/pull locking action.
• - Seal Material: Nitrile O-ring to maintain seal integrity.
• - Max. rated flow rate: 707.92 liters per minute.
• - Pressure rating: up to 300 psi at 70°F.
• - Operating temperature range: -40°F to 250°F.
• - Overall Length: 1.63 inches.
• - Max. Outside Diameter: 7/8 inch.
