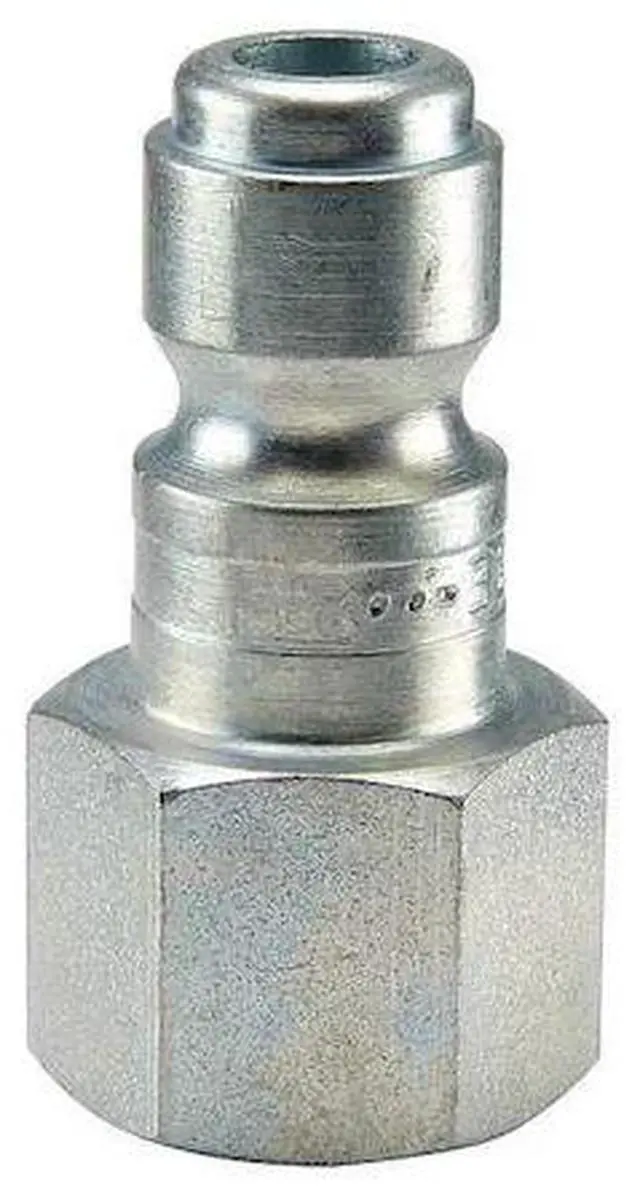

PARKER 1E Coupler Plug,Steel,FNPT,1/4 In. Pipe

The PARKER - 1E is a quick hose coupling designed for pneumatic applications. It supports sleeve-locking connection and disconnection without tools of hoses or equipment. Constructed from steel with a trivalent chrome finish, this coupling is intended for use with 1/4 in hose fittings and a 3/8 in coupling size. It features female hose fitting gender and an NPT connection type, is intended to form a sealed connection when installed with compatible fittings and within the specified pressure and temperature ranges in pneumatic lines.

Key Features:

• - Application: Pneumatic systems
• - Coupling component: Plug type
• - Coupling locking type: Sleeve mechanism
• - Body and coupling size: 3/8 in
• - Hose fitting size: 1/4 in, female
• - Connection type: NPT thread
• - Material: Steel with trivalent chrome finish
• - Seal material: Nitrile
• - Rated max. flow rate: 1,415.84 liters per minute (for rated conditions)
• - Max. rated working pressure at 70°F: 300 psi (use only within the specified rating)
• - Rated operating temperature range: -40°F to 250°F (use only within this range)
• - Max. outside diameter: 3/4 in
• - Overall length: 1.63 in
• - Thread size: 1/4" -18
• - Interchange type: Tru-Flate-Automotive
• - Does not include an internal valve
• - Barbed fitting: No
