ZORO SELECT 3000301718 1-1/2 in NPT 316 Stainless Steel Union, Female-Female,

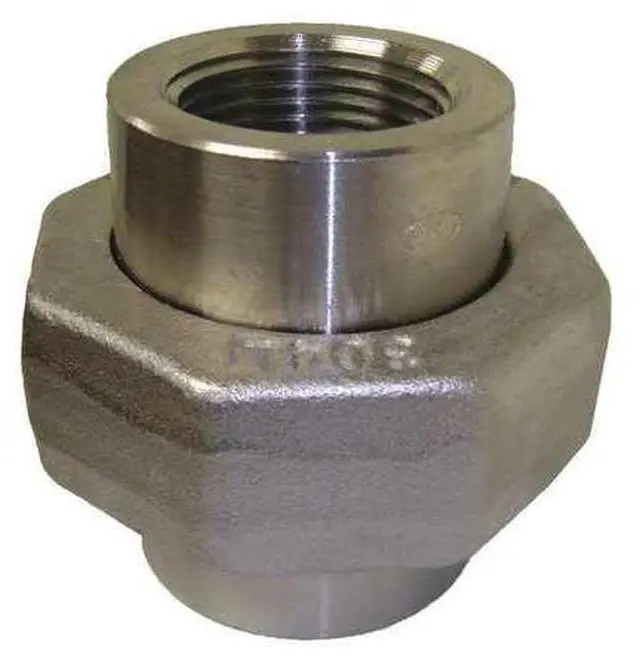

The ZORO SELECT - 3000301718 is a stainless steel pipe union designed to join two 1-1/2 inch pipe ends with female NPT threaded connections on both sides. This three-piece mechanical fitting (body, nut, and mating seat or gasket) allows connection or disconnection without rotating the pipes, facilitating maintenance or replacement.

Constructed from 316 stainless steel, this pipe union is compatible with industrial piping systems conveying natural gas, non-potable water, and oil, and offers corrosion resistance.

The union is rated for operation at pressures up to 3000 psi at 100°F and within a temperature range of -20°F to 100°F.

Key Features:

• - Pipe Size: 1-1/2 inch nominal pipe size on both sides.
• - Connection Type: Female National Pipe Thread (NPT) on Side A and Side B.
• - Material Grade: 316 stainless steel for corrosion resistance.
• - Pressure Class: Class 3000, rated for up to 3000 psi at 100°F.
• - Temperature Range: Operates from -20°F to 100°F.
• - Hex Size: 3 3/8 inches across flats, providing a wrenching surface.
• - Overall Length: 3 inches.
• - Standards: omit from description
• - Note: this product does not include pre-applied thread sealant or sealing components.
