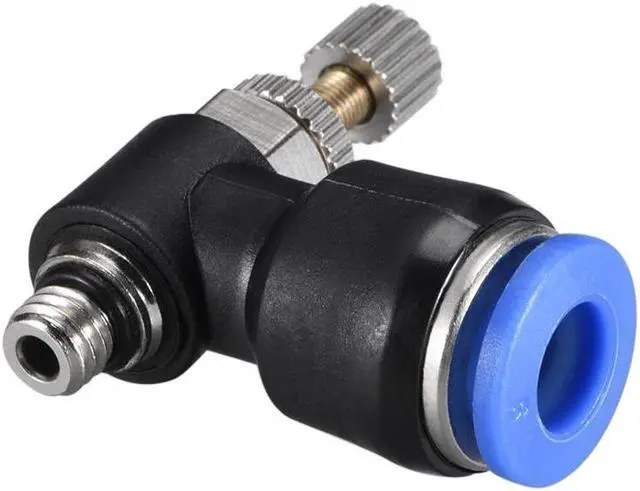

Push-to-Connect Air Flow Control Valve, Elbow, 15/64" Tube OD x M5 Male Thread Speed controller Valve Tube fitting Blue, 5pcs

Product Features:

Product Name : Air Flow Control Valve

Model :SL6-M5

Net Weight : 44g

Material : Plastic,Metal

Color : Black,Blue

Surface Treatment : Spray paint

Operating Pressure : 0-1MPa

Guaranteed pressure resistance : 1.2MPa

Operating temperature0 - 60 Degree Celsius

Body Style : Elbow Speed Controller

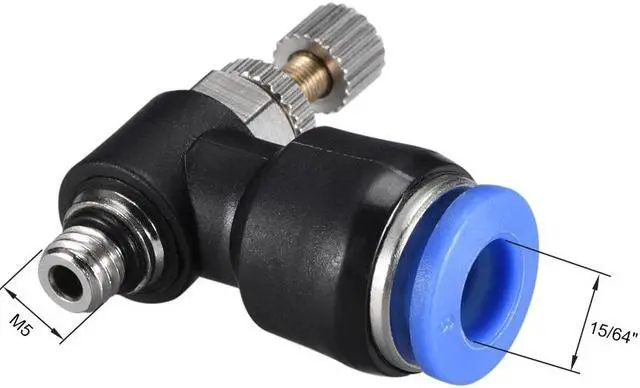

Tube and Thread Size : 15/64" Tube OD x M5 Male Thread (6mm x 5mm)

Dimension : 30.4mm x 28mm x 13.7mm / 1.2" x 1.1" x 0.54"(L x W x H )

KEY_TAB

Package Content:

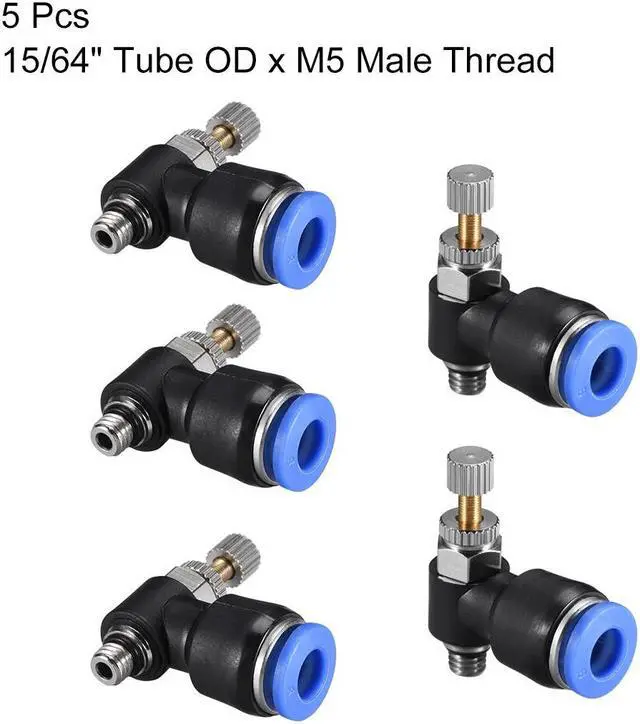

5pcs x Air Flow Control Valve

KEY_TAB

Description:

1.Push in fittings, flow speed controller, used in pneumatic piping's Series pneumatic inline air flow speed control valve push in fitting equipped,connect with polyethylene, nylon and PU tubing.

2.The special adjustment needle design provides a high precision air flow adjustment. Knob for precise manual adjustment of flow rate

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Quick and simple installation,with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required.

KEY_TAB

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
