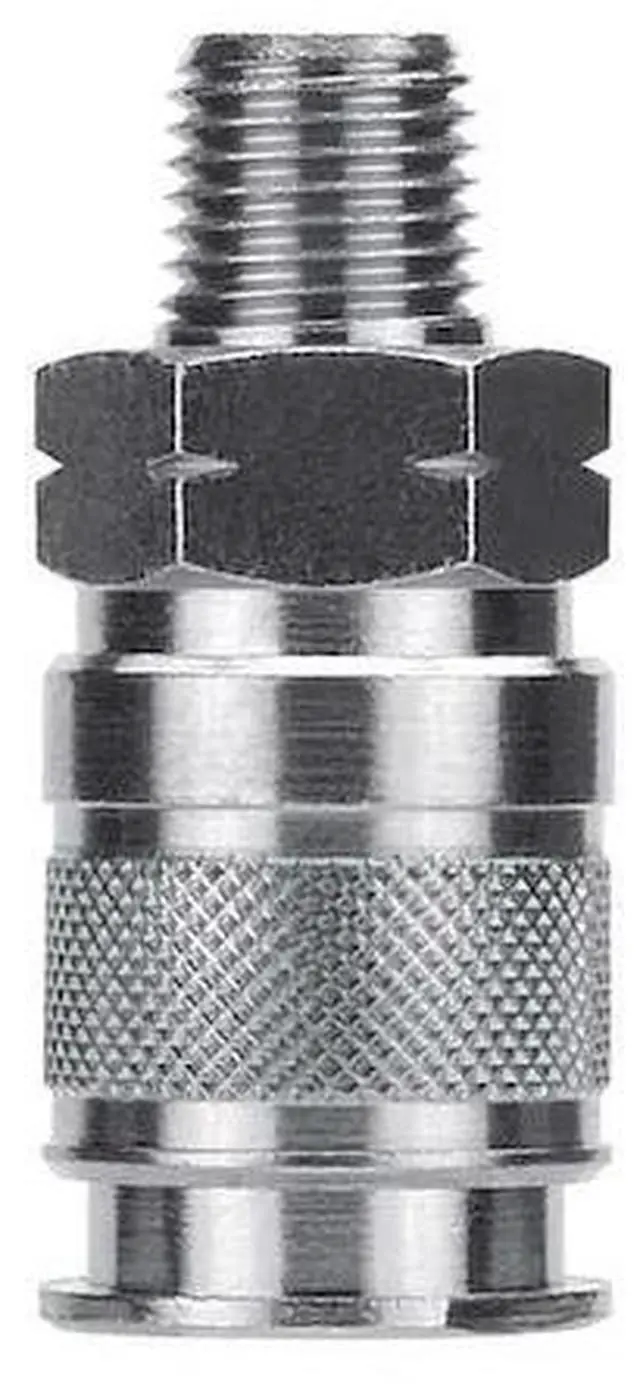

AIGNEP USA 80191-06 Quick Disconn. Fitting,(M)NPT,1/4,Brass

The AIGNEP USA - 80191-06 is a quick connect hose coupling provides tool-free connection and disconnection of hoses/equipment (see specified dimensions and coupling type). It is configured for sealed connections in compressed air service (leak performance depends on system conditions and correct installation). It can reduce time required for hose changes compared with couplings requiring tools (system setup may affect results). The fitting is constructed from brass with a nickel-plated finish and includes a valve component with a poppet mechanism to control air flow. Rated maximum working pressure: 250 psi at 70°F. It is rated for a maximum flow rate of 595 L/min and is rated for operation within the temperature range of 0°F to 160°F. This coupling uses a sleeve locking system and the universal interchange standard.

Key Specifications:

• - Connection Type: 3/8"-18 NPT Male thread
• - Hose Fitting Size: 3/8 in
• - Quick connect coupling size: 1/4 in with 1/4 in body size
• - Includes nickel-plated brass body, stainless steel locking balls, and protected seal
• - Seal Material: Nitrile
• - Overall Length: 2.13 in
• - Maximum Outside Diameter: 15/16 in
• - Coupling Component: Socket
• - Valve Type: Poppet valve included
