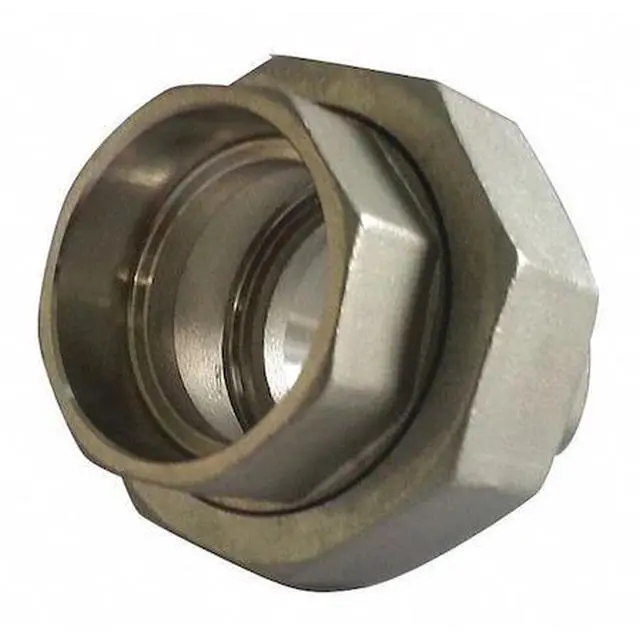

ZORO SELECT 600U111SW010 StainlessSteel,Union,1"Socketx1"Socket

The ZORO SELECT - 600U111SW010 is a stainless steel pipe union designed to join two 1-inch pipe ends with a socket weld connection, allowing for connection or disconnection without rotating the pipes. Constructed from 316 stainless steel, it is listed for use with: air, natural gas, non-potable water, oil, potable water, steam. The union is rated Class 150 for pressure, conforming to ASTM-A-351 material standards and ANSI B16.5 dimensional standards, and meets MSS-SP-51 requirements for Class 150LB general dimensions, pressure, and temperature ratings. Key Features:

• - Material: 316 stainless steel for corrosion resistance
• - Connection type: Socket weld on both female ends
• - Nominal pipe size: 1 inch on both sides
• - Pressure rating: Class 150
• - three-piece construction with body, nut, and mating seat
• - Hex size: 52.5 mm for wrench application
• - Compliant with low lead requirements for potable water systems
• - Overall length: 52.32 mm
• - No pre-applied thread sealant or included seal

. This item has been restricted from sale in the following state(s): []
