ZORO SELECT 600U111N034 316 Stainless Steel Union, 3/4 in x 3/4 in Fitting Pipe

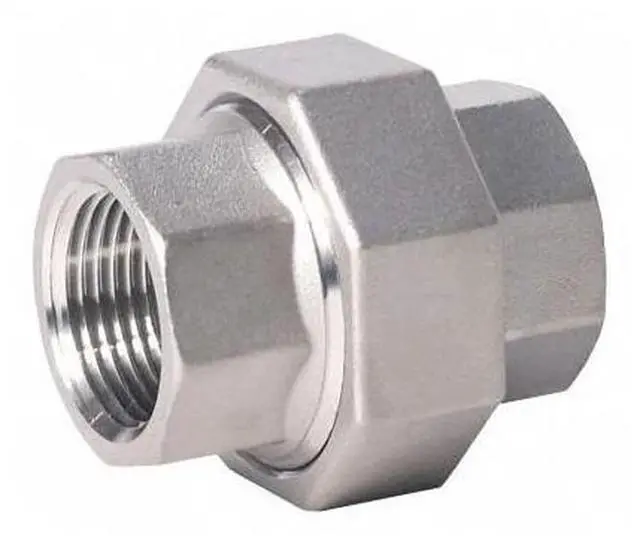

The ZORO SELECT - 600U111N034 is a 3/4-inch stainless steel pipe union constructed from 316 stainless steel, designed to join two pipe ends without requiring them to be rotated for connection or disconnection. This three-piece fitting includes a body, nut, and mating seat or gasket, allowing for maintenance or replacement. It is rated for Class 150 pressure and is compatible with applications involving air, natural gas, non-potable water, oil, potable water, and steam. The fitting features female National Pipe Thread (NPT) connections on both ends.

Key Features:

• - Pipe Size: 3/4 inch nominal pipe size on both ends.
• - Connection Type: Female NPT threading with 14 threads per inch on both Side A and Side B.
• - Material Grade: 316 stainless steel for corrosion resistance.
• - Pressure Rating: Class 150 with maximum operating pressure not to exceed Class 150 rating and maximum steam pressure of 150 psi.
• - Hex Size: 46.5 mm wrenching surface for installation.
• - Overall Length: 38.5 mm.
• - Meets ANSI Standards B1.20.1 for threading and Class 150 pressure rating.
• - Includes no pre-applied thread sealant or sealing components.
• - Compliant with low lead requirements for potable water usage.
