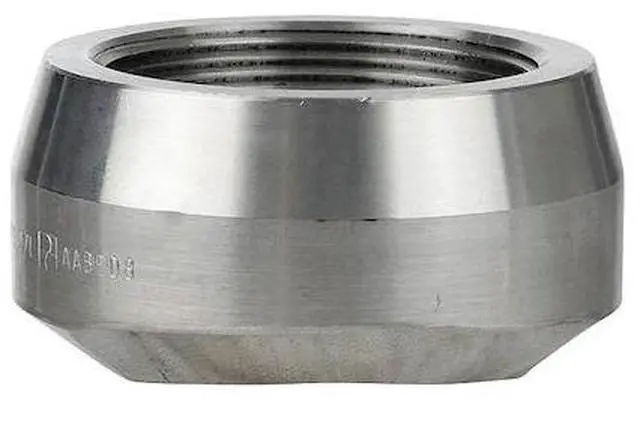

ZORO SELECT 4307003610 3/8 in FNPT 316 Stainless Steel Threaded Outlet, Class

The ZORO SELECT - 4307003610 is a stainless steel threaded outlet fitting intended for use as a threaded outlet fitting for piping applications. It features a machined screw-type female branch port tapped with NPT threads for attaching pipes, valves, gauges, instruments, or plugs. Constructed from 316 stainless steel, this fitting is manufactured to meet the specified pressure ratings for Class 3000 according to applicable standards and has been tested and rated for maximum internal pressure of 3,000 psi and maximum steam pressure of 2,810 psi at 350°F. The fitting has a nominal pipe size of 3/8 inch and an outside diameter of approximately 1-1/4 inches on the primary (Side A) connection and includes a socket-type female secondary (Side B) end sized at 1/2 inch nominal pipe size.

Key Features:

• - Material Grade: 316 stainless steel for corrosion resistance.
• - Connection Type: Female NPT threaded inlet (Side A) and female socket outlet (Side B).
• - Pressure ratings are for reference to the products standard specifications and testing conditions.
• - Dimensions: 3/8 in nominal pipe size with an outside diameter of approximately 1-1/4 inches on Side A; 1/2 in nominal size on Side B.
• - Pipe Schedule Compatibility: Schedule 80 pipe schedule.
• - Does not include pre-applied thread sealant or sealing components.
• - Manufactured in accordance with MSS SP-97 standard.
