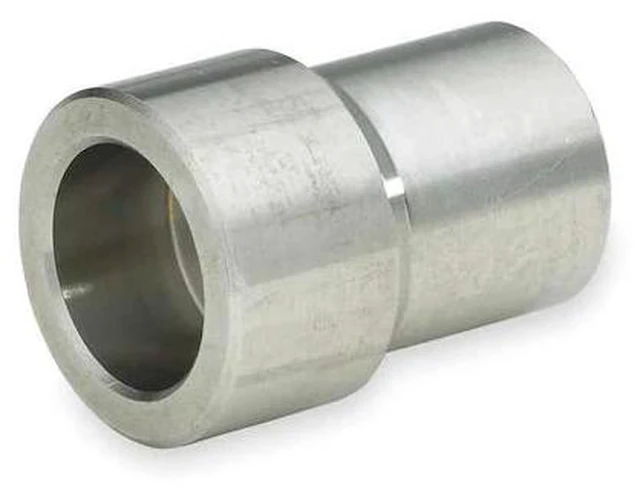

ZORO SELECT 4307004540 Reducing Insert, 1-1/4 in x 1 in, Socket Weld, 304L

A stainless steel reducing socket weld insert for 1-1/4 in x 1 in nominal pipe size connections. Constructed from 304 stainless steel and compatible with Schedule 80 piping, this socket weld fitting features female socket connections on both ends. Maximum pressure rating: 3000 psi; Maximum steam pressure: 2810 psi at 350 °F. The overall length of the fitting is 2 1/8 inches, with the larger end having an outside diameter of 1-1/4 inches. Standards compliance: ISO 9001:2008; ASTM A182; ASME B16.11; MSS SP-79; Class 3000 pressure rating.

Key Features:

• - Material: 304 stainless steel
• - Pipe Sizes: 1-1/4 in x 1 in nominal sizes
• - Connection Type: Socket weld with female sockets on both sides
• - Pressure Ratings: Maximum pressure rating: 3000 psi; Maximum steam pressure: 2810 psi @ 350 °F
• - Overall length: 2 1/8 in
• - Outside diameter at larger end: 1-1/4 in
• - Pipe Schedule Compatibility: Schedule 80
• - Standards: ISO 9001:2008; ASTM A182; ASME B16.11; MSS SP-79
• - Fitting Shape: Reducing Insert (Reducer)
