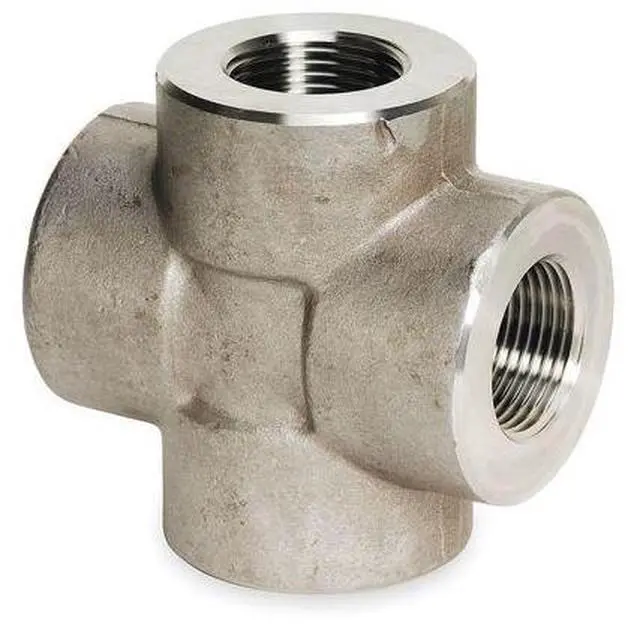

ZORO SELECT 4307001006 304 Stainless Steel Cross Fitting, 3/8 in FNPT, Class

The ZORO SELECT - 4307001006 is a stainless steel pipe fitting designed as a four-way "Cross" with four openings arranged at right angles within one plane. It is used to join or divide flow among four pipe runs, available in equal and reducing configurations. Suitable for applications within specified parameters, it features threaded, socket-weld, or butt-weld connection options and a pressure rating of Class 3000. Made from grade 304 stainless steel, suitable for environments consistent with material specifications.

Key Features:

• - Made from metal (304 stainless steel) for corrosion resistance and durability.
• - Rated for operation at pressures up to 2,570 psi at 100°F and 1,965 psi at 350°F within specified conditions.
• - Conforms to standards including ASME B16.11, ASTM A182, and ASME B1.20.1.
• - Features FNPT connection type with nominal pipe sizes of 3/8 inches.
• - Has four female connection points according to specified design.
• - Overall length of 2 3/16 inches; finish and color as specified.
• - Compatible with pipe schedules and classes including Schedule 160 and Class 3000 within specified parameters.
