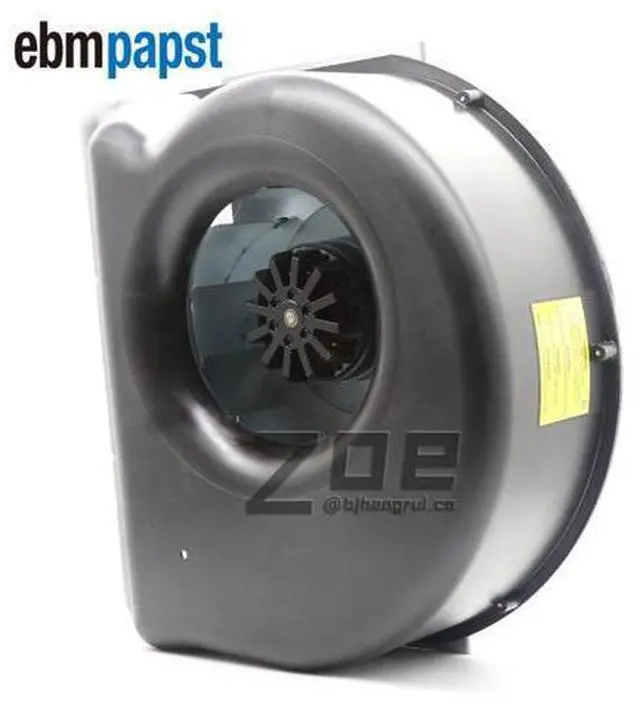

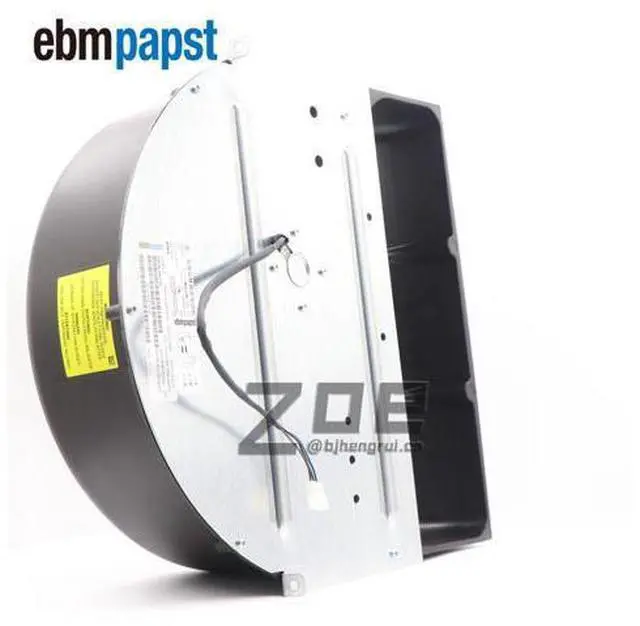

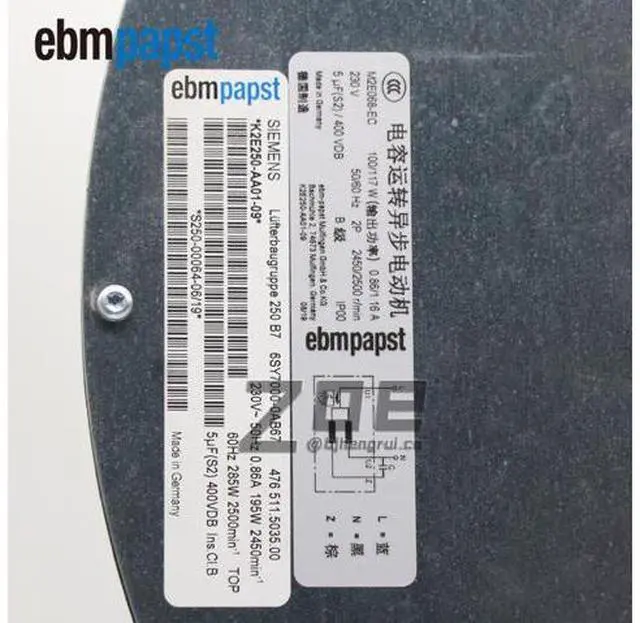

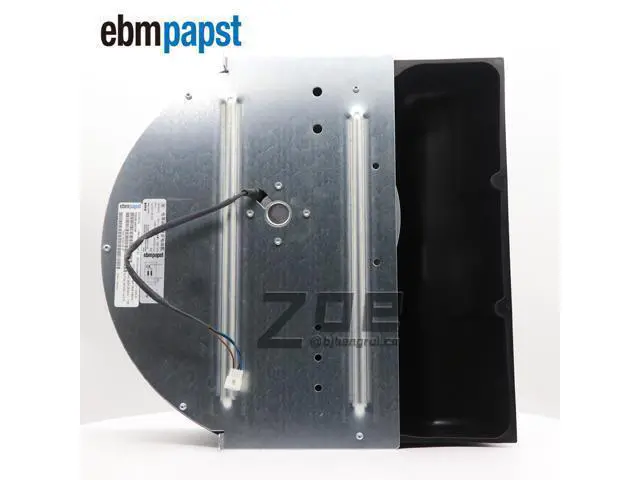

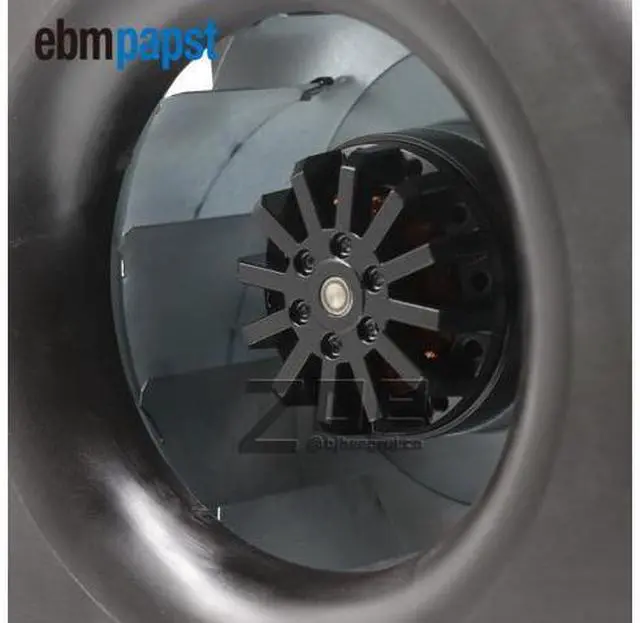

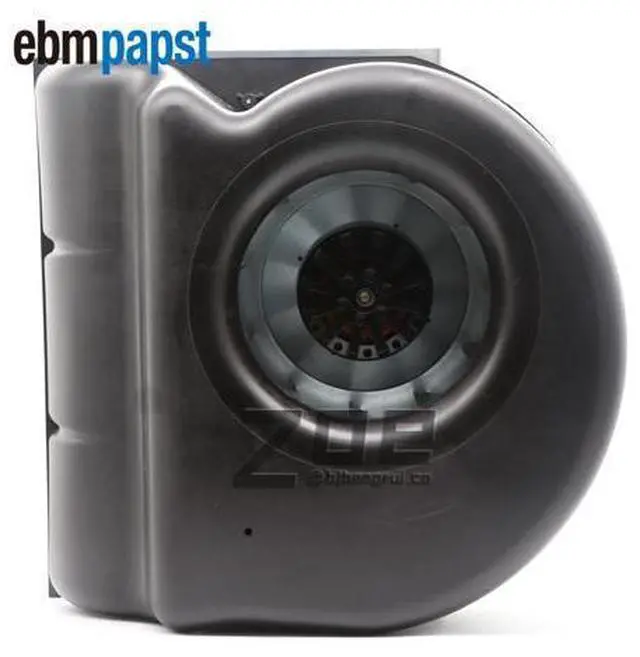

Ebmpapst K2E250-AA01-09 Centrifugal Fan 6SY7000-0AB67 Inverter Cooling Fans
- Condition: 100% new and good quality;
- Brand:ebm-PAPST ;Model: K2E250-AA01-09
- Material : plastic case, metal impeller connected to metal outer rotor motor.
- Size: 250mm; Voltage: 230V ;Power input: 195~265W; Speed: 2450~2500min-1 ; Current draw:0.86~1.16A;
- Frequency:50~60Hz;Weight: 5.4KG;Motor capacitor:5µF;Capacitor voltage:400VDB;Min. ambient temperature:-25°C;Max. ambient temperature:55°C;
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Product Parameter:
For SIEMENS inverter 6SY7000-0AB67 fan
The impeller diameter Phi 250mm
[motor speed]: 2650 + 10% RPM
[working frequency]: 50/60 Hz
[working voltage]: 230VAC
[voltage range]: 180V... 240V AC
[working current]: 0.86A
[input power]: 195/285W
[maximum wind]: 1450 m3/h
[motor speed]: 2450/2500min-1
[starting capacitor]: 6.0 uF /450V
[working temperature]: -20.. 60 C
[maximum wind pressure]: 0.. 580 Pa
[service life]: L10 life expectancy is 30000 hours at 40 C.
[noise index]: 76.5 dBA
[insulation level]: F level (155)
[protection grade]: IP20
Package:
fan*1
For SIEMENS inverter 6SY7000-0AB67 fan
The impeller diameter Phi 250mm
[motor speed]: 2650 + 10% RPM
[working frequency]: 50/60 Hz
[working voltage]: 230VAC
[voltage range]: 180V... 240V AC
[working current]: 0.86A
[input power]: 195/285W
[maximum wind]: 1450 m3/h
[motor speed]: 2450/2500min-1
[starting capacitor]: 6.0 uF /450V
[working temperature]: -20.. 60 C
[maximum wind pressure]: 0.. 580 Pa
[service life]: L10 life expectancy is 30000 hours at 40 C.
[noise index]: 76.5 dBA
[insulation level]: F level (155)
[protection grade]: IP20
Package:
fan*1
