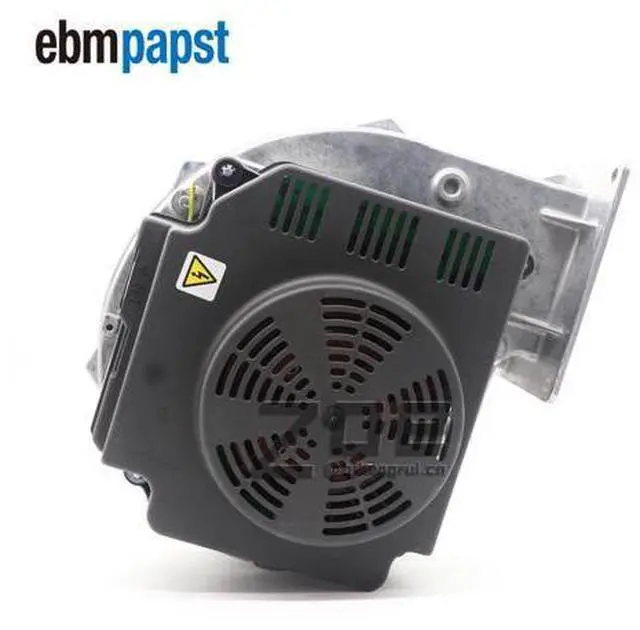

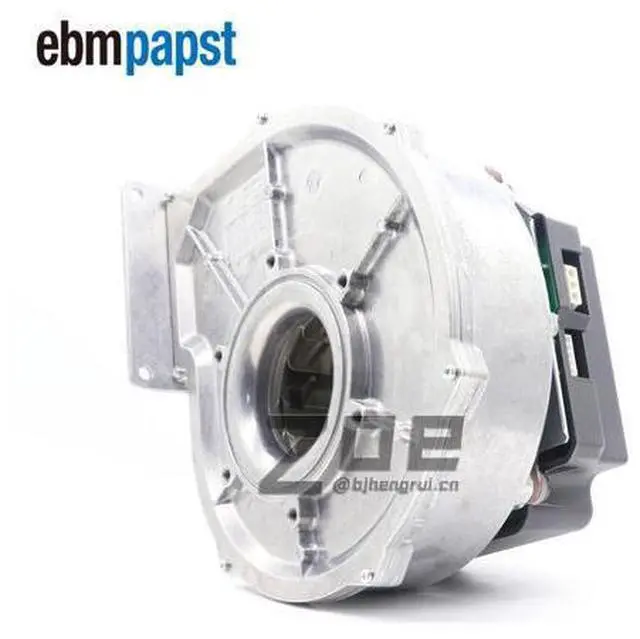

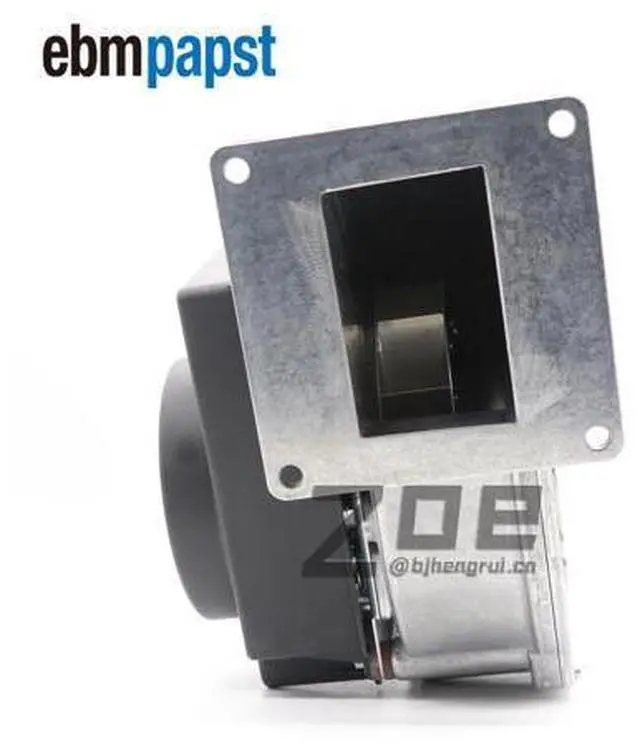

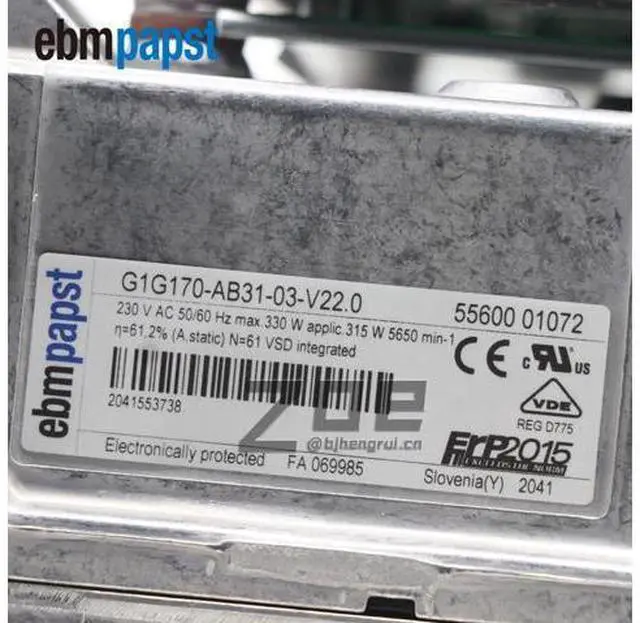

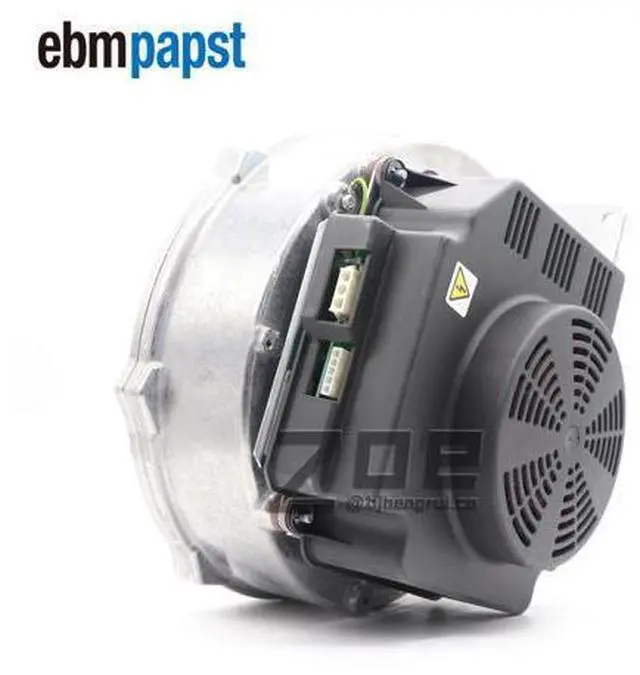

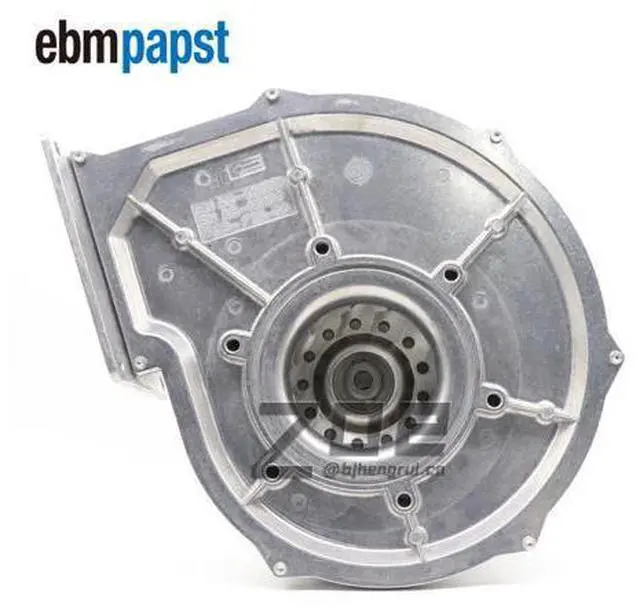

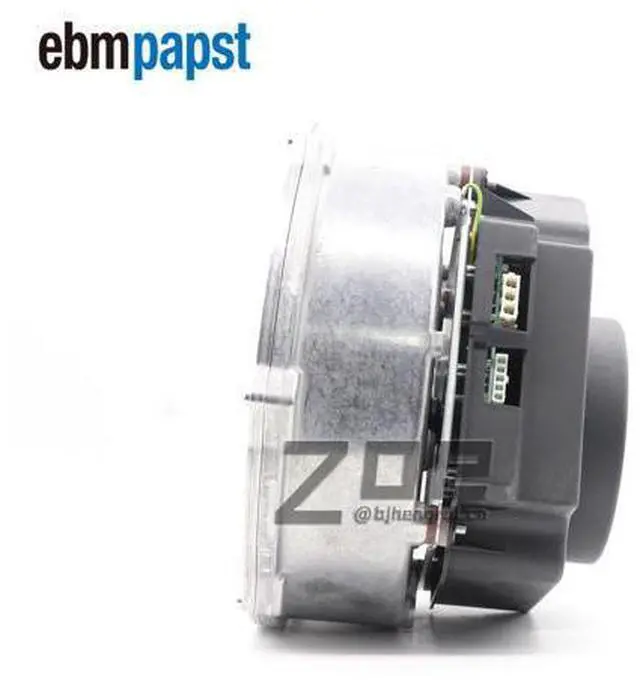

Ebmpapst G1G170-AB31-03 Centrifugal Blower AC 230V 315W 2.15A Gas Boiler Cooling Fan
- Item #: 9SIVSY0KUV3831
- Mfr. Part #: EbmpapstD -86
- Condition: 100% new and good quality.
- Model No.G1G170-AB31-03 ;Motor:M1G074-CF;Brand:ebmpapst ;
- Motor bearing : Ball bearing; Size:170mm ;Type:Forward Leaning Centrifugal Fan;
- Nominal voltage :230VAC; Speed (rpm) / min-1:5650(r/min); Power consumption / W :315(W); Degree of protection: IP20;Insulation class:B;
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Product Parameter:
Model. G1G170-AB31-03
Motor: M1G074-CF
Type: Forward Leaning EC Centrifugal Fan
Brand ebm-papst
Nominal voltage: 230VAC
Frequency/Hz: 50Hz
Speed: 5650RPM
Power consumption: 315W
Current draw: 2.15A
Weight: 4.5 kg
Size: 170mm
Impeller material: Aluminum sheet
Housing material: Die-cast Aluminum
Degree of protection: IP20
Insulation class: B
Motor bearing: Ball bearing
Conformity with standards: CE
Min. ambient temperature / °C~Max. ambient temperature / °C: -25~55?
Package: Fan*1
Technical features:
Mass 4.5 kg
Size 170 mm
Surface of rotor Coated in black
Material of protective cover Polyflam RPP 374-ND CS1 (UL 97-V0)
Material of impeller Aluminium sheet
Housing material Die-cast aluminium
Direction of rotation Clockwise, seen on rotor
Type of protection IP 20
Insulation class "B"
Max. permissible ambient motor temp + 80 °C
Min. permissible ambient motor temp - 40 °C
Mounting position Any
Cooling bore / aperture Rotor-side
Premix If gas is premixed in the blower, a special blower must be used.
Motor bearing Ball bearing
Technical features - Tach output
- Motor current limit
- Emergency operation
- PWM control input
- Control interface with SELV potential safely disconnected from the mains
- Over-temperature protected motor
Touch current acc. IEC 60990 <= 3.5 mA
Electrical leads With plug
Motor protection Thermal overload protector (TOP) wired internally
Product conforming to standard CE
Approval CCC; CSA C 22.2 No. 113; UL 507; VDE
Model. G1G170-AB31-03
Motor: M1G074-CF
Type: Forward Leaning EC Centrifugal Fan
Brand ebm-papst
Nominal voltage: 230VAC
Frequency/Hz: 50Hz
Speed: 5650RPM
Power consumption: 315W
Current draw: 2.15A
Weight: 4.5 kg
Size: 170mm
Impeller material: Aluminum sheet
Housing material: Die-cast Aluminum
Degree of protection: IP20
Insulation class: B
Motor bearing: Ball bearing
Conformity with standards: CE
Min. ambient temperature / °C~Max. ambient temperature / °C: -25~55?
Package: Fan*1
Technical features:
Mass 4.5 kg
Size 170 mm
Surface of rotor Coated in black
Material of protective cover Polyflam RPP 374-ND CS1 (UL 97-V0)
Material of impeller Aluminium sheet
Housing material Die-cast aluminium
Direction of rotation Clockwise, seen on rotor
Type of protection IP 20
Insulation class "B"
Max. permissible ambient motor temp + 80 °C
Min. permissible ambient motor temp - 40 °C
Mounting position Any
Cooling bore / aperture Rotor-side
Premix If gas is premixed in the blower, a special blower must be used.
Motor bearing Ball bearing
Technical features - Tach output
- Motor current limit
- Emergency operation
- PWM control input
- Control interface with SELV potential safely disconnected from the mains
- Over-temperature protected motor
Touch current acc. IEC 60990 <= 3.5 mA
Electrical leads With plug
Motor protection Thermal overload protector (TOP) wired internally
Product conforming to standard CE
Approval CCC; CSA C 22.2 No. 113; UL 507; VDE
