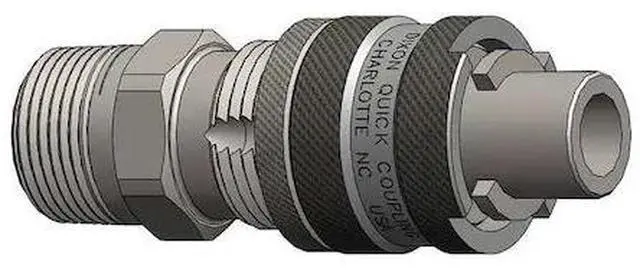

DIXON N4M4-B-LS Male to Bowes Nipple,(M)NPT,1/2,Brass

The DIXON - N4M4-B-LS is a quick connect hose coupling provides tool-free connection/disconnection of the coupling halves using the sleeve locking mechanism. It features a male hose fitting with a 1/2 inch nominal size and NPT threaded connection, compatible with Bowes style interchange systems. The coupling is compatible with fluid, air, or general-purpose lines when used within the specified pressure and temperature ranges. It is designed to form a seal within the specified pressure and temperature ranges, which supports quicker hose connection/disconnection and may reduce time between hose changes in pneumatic and hydraulic systems.

Key Features:

• - Material: Brass construction with zinc plated finish.
• - Connection type: 1/2" -14 NPT male thread.
• - Hose fitting size: 1/2 inch with corresponding hose I.D. of 1/2 inch.
• - Coupling size: 1/2 inch with a plug component.
• - Coupling locking type: Sleeve mechanism.
• - Seal material: Nitrile for fluid-tight sealing.
• - Max. working pressure: 300 psi at 70°F.
• - Max. flow rate: 5,776.64 liters per minute.
• - Temperature range: -40°F to 250°F.
• - Overall length: 3.63 inches with max. outside diameter of 1.3125 inches.
• - Barbed: No, smooth threaded connection.
