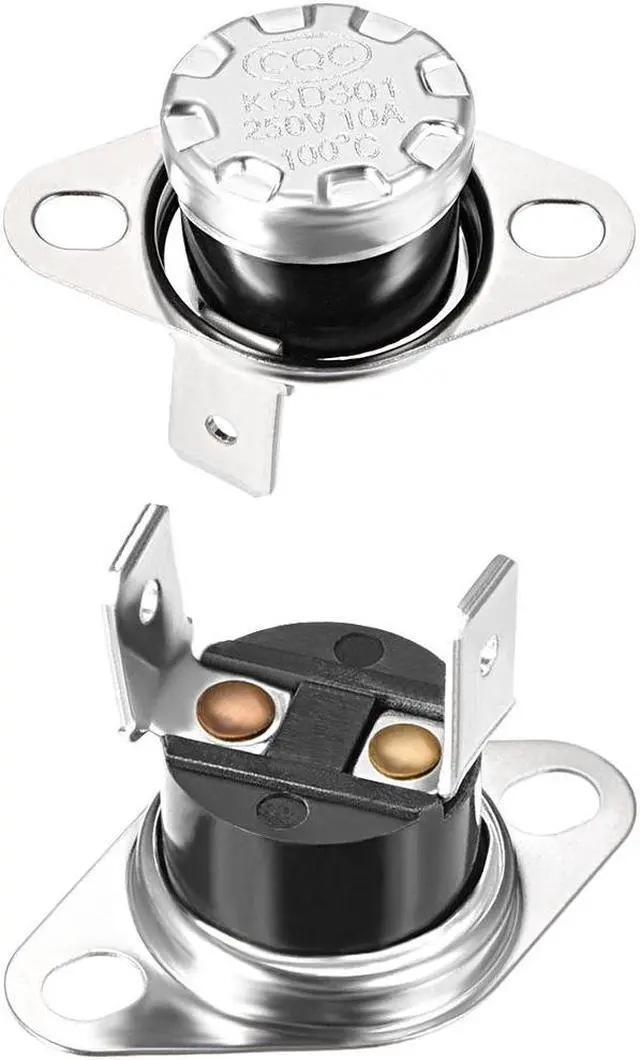

KSD301 Thermostat, Temperature Control Switch 100°C 10A Normally Open N.O 2pcs

Specification:

Product Name : Temperature Control Switch

Model: KSD301

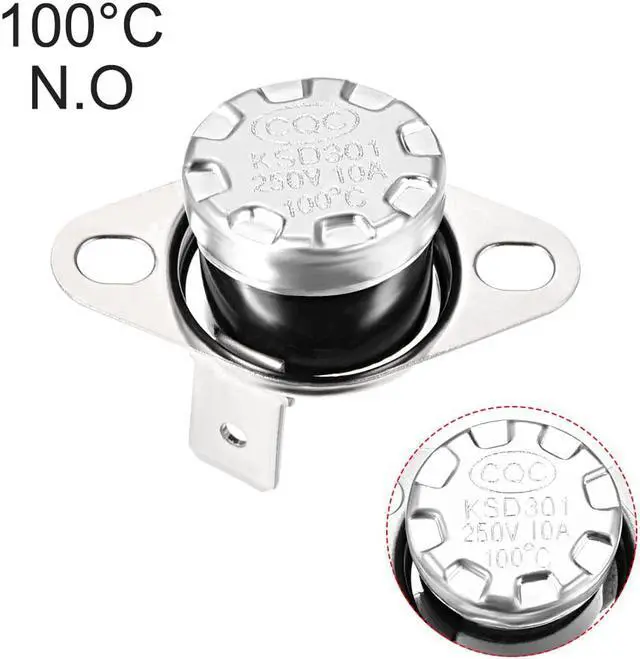

Action Temperature: 100°C

Action Type: N.O (Normal Open)

Rated Voltage/Current : 250V/10A

Pin Type : Right Angle

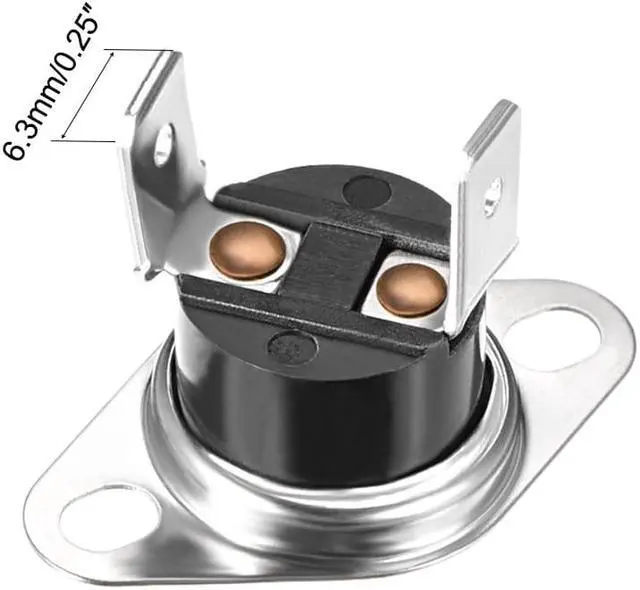

Pin Width : 6.3mm/0.25inch

Contact Life: More than 50,000 times (action times)

Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon

KEY_TAB

Package Content :

2 x Temperature Control Switch

KEY_TAB

Description :

1.Normally Open: The original state of temperature control switch contact is open, and close when the temperature sensing exceeds the rated temperature.

2.Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.

3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.

4.Function: It is open until the temperature reaches 100 Celsius degree, then the switch close. Widely used for temperature control or protection for household electric appliances.

5.Application: Mainly used for motor electric heating water dispenser, water bottles, disinfection cabinet, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, disinfection cupboard and motor cleaner etc.
