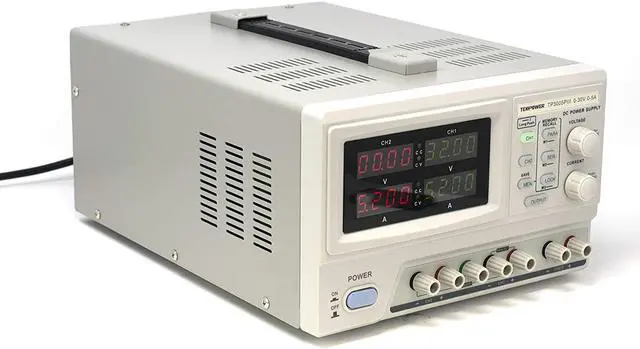

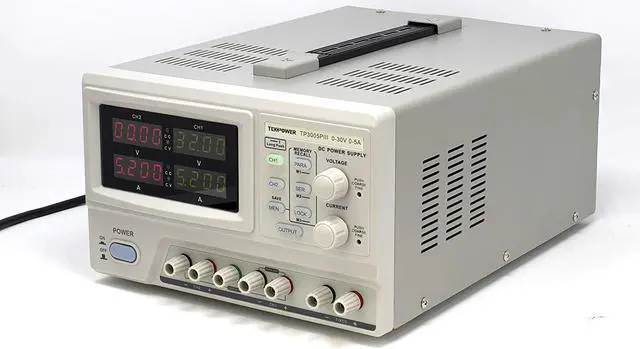

Tekpower TP3005PIII Programmable Variable Triple Output DC Power Supply
- Input voltage: 110 V/ 60 Hz
- Fuse: 4A /250 V
- Output voltage: 0-30 V
- Output current: 0-5 A
- Power effect:
- --- C.V. 0.01 % + 3 mV
- --- C.C. 0.1 % + 3 mA
- Load effect:
- --- C.V. 0.01 % + 3 mV
- --- C.C. 0.1 % + 5 mA
- Setup resolution: 10 mV, 1 mA
- Setup accuracy: 0.1% + 20 mV, 0.1% + 5 mA (25°C ± 5°C)
- Ripple: 1 mV rms, 3 mA rms
- Temperature coefficient: 150 ppm + 10 mV, 100 ppm + 5 mA
- Readout resolution: 10 mV, 1 mA
- Read back temp. coefficient: 100 mms + 10 mV, 100 mms + 5 mA
- Reaction time (10% rated load):
- -voltage rise: 100 ms
- -voltage drop: 100 ms
- Parallel load regulation: 0.1 % + 0.1V
- Serial load regulation: 0.1 % + 0.1V
- Dimensions: 8 ¾ (W) x 5 ¾ (H) x 12 ¼ (D)
- Weight: 15.5 lbs
+
+
Overview
Specs
Reviews
The TP3005PIII is a high-precision, variable DC power supply. It can operate on either Constant Voltage (C. V. ) or Constant Current (C. C. ) mode. While on C. C. mode, the voltage is adjustable between 0 and 30 volts. Whereas the current is adjustable between 0 and 5 amps when on C. V. mode. Dual channels output for convenient serial or parallel setup, the 3rd output is fixed output at 5 volts.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by B-IN Electronics Return Policy
