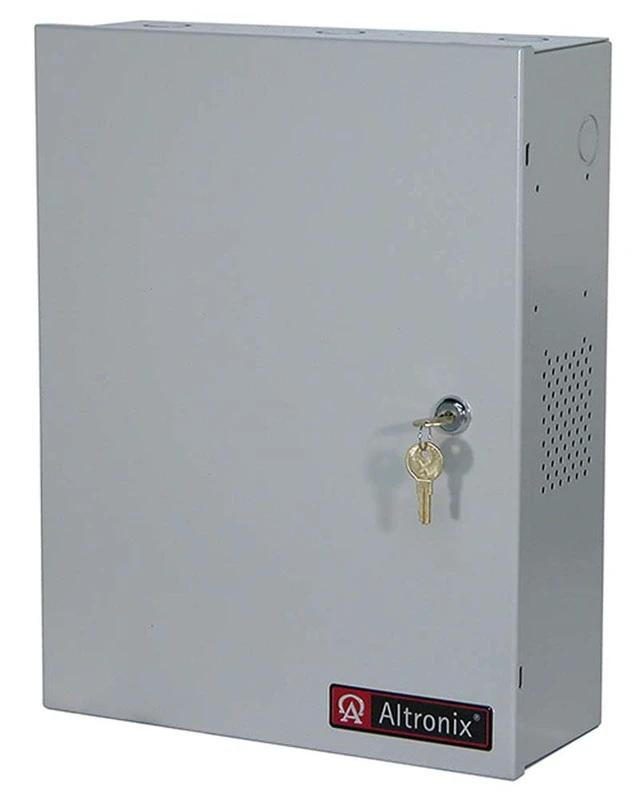

Altronix - AL1024ULXPD8 - Altronix AL1024ULXPD8 Proprietary Power Supply - Wall Mount, Enclosure - 120 V AC Input - 24 V

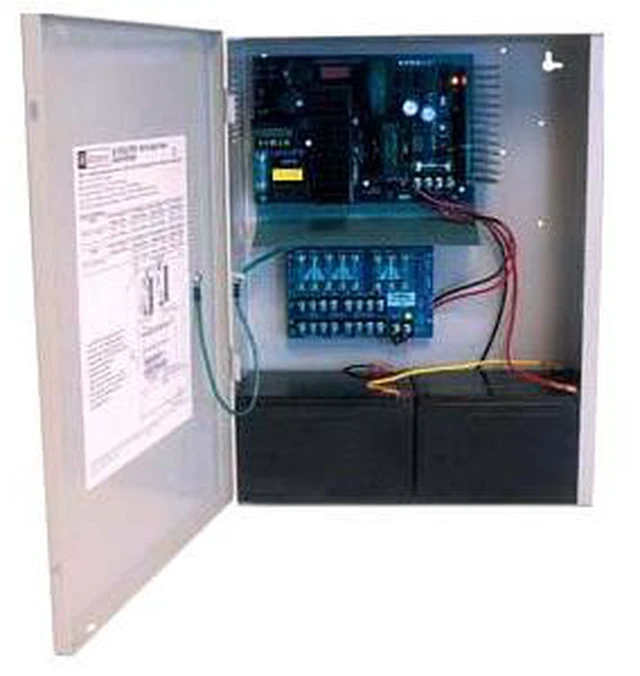

Model AL1024ULXPD8 power supply/charger converts a 115VAC 60Hz input, to 24VDC @ 10 amp supply current for Access Control application, 24VDC @ 8 amp supply current with 10 amp during alarm for Fire Alarm applications distributed via eight (8) fuse protected non power limited outputs. Model AL1024ULXPD8CB is a PTC protected version of this unit.
Product Type: Proprietary
Power Supply Input Voltage: 120 V AC
Output Voltage: 24 V DC @ 10 A
Product Type: Proprietary
Power Supply Compatibility: Access Control Systems Fire Protective Signaling Systems
Input Voltage: 120 V AC
Manufacturer Part Number: AL1024ULXPD8
Packaged Quantity: 1
Limited Warranty: Lifetime
Output Voltage: 24 V DC @ 10 A
Weight (Approximate): 10.40 lb
Form Factor: Enclosure
Form Factor: Wall Mount
Form Factor: Enclosure
Form Factor: Wall
Mount Manufacturer: Altronix Corporation
Product Model: AL1024ULXPD8
Product Name: AL1024ULXPD8 Proprietary
Power Supply Brand Name: Altronix
Brand Name: Altronix
Country of Origin: United
States Height: 15.5
Width: 12.2
Depth: 4.5
Environmentally Friendly: Yes
Environmental Certification: RoHS
